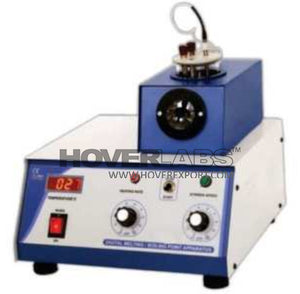

DIGITAL MELTING POINT APPARATUS (Model: HVS-MPA85A)

DIGITAL MELTING POINT APPARATUS

Model: HVS-MPA85A

TECHNICAL SPECIFICATIONS: -

-Display: 4 Digit Seven Segment LED display

-Temperature: Ambient to 0-300°C

-Resolution: 1°C

-Capillary Glass Tube: 100mm long, 0.8 to 1.1 mm Internal diameter

-Boiling Point: 6x75mm glass tube

-Sample Size: Fine powder properly dried at a temperature considerably below its melting Mint 4 to 6 mm high

-Oil-bath: Silicon oil bath beaker - 200 ml capacity with Teflon cover fitted with oil immersion heater. It is having three holes for holding the capillaries, one for boiling point tube and one for thermometer

-Stirrer Speed Power: Controllable with front knob

-Power: 230V ±10% AC,50 Hz

-Dimension: 365x350x495mm (approx)

-Weight: 6kg

INTERNAL CODE: - KD.2331.25614
