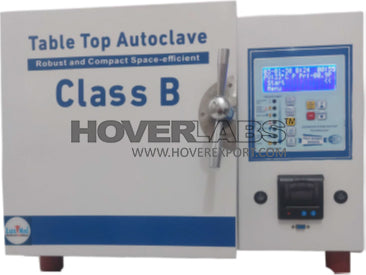

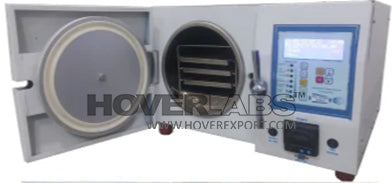

“HOVERLABS” B CLASS STEAM AUTOCLAVE TABLE TOP FRONT LOADED WITH DISTILLED WATER PLANT (Model: HVS-TA2-B)
“HOVERLABS” B CLASS STEAM AUTOCLAVE TABLE TOP FRONT LOADED WITH DISTILLED WATER PLANT
(Model: HVS-TA2-B)
‘HOVERLABS’ The Table Top Autoclave can be used for medical and surgical items in ophthalmology, dentistry and internal medicine clinics, such as packaged items, hollow and porous items for sterilization, and can also be used in emergency rooms and small laboratories. HVS-TA2-B Sterilizer is an automatic high temperature and pressure rapid sterilizer which works with steam as medium. It can be widely used in department of stomatology and ophthalmology, operating room, supply room, dialysis room and other medical institutions. It is unpacked items, solid instruments, dental hand pieces, endoscopes, implantable instruments, dressing fabric and rubber tubes, etc.
TECHNICAL SPECIFICATION:
Type of Autoclave: B Class Steam Autoclave Table top, Front Loaded with a size of 25 Liters.
Chamber Size(mm): φ270*460
Sterilization Class: Class B
Sterilization Temperature: 121°C & 135°C adjustable
Max Working Temperature: 138.0 °C
Drying System: Vacuum drying system
Display: LCD display
Testing System: B&D Test, Vacuum Test, Helix Test
Test Pressure: 5.00 Bar
Control Precision: Temperature: 1℃, Pressure: 0.1bar
Sterilization Data: RS-232 / USB and printer (standard)
Safety System: Hand lock door, Pressure lock system, Relief valve in case of over pressure, Pressure or temperature over load protection, Silicon Rubber Gasket is provided for Leak Proofing, Alarm for system failure, finish reminding, water level warning and malfunction indications .
Controller: Soft push buttons
Steam generator: External shall be present
Reservoir: Operating on Distilled Water, capacity 4-5 Liters
Air Removal Device: Vacuum Pump (Diaphragm Type)
Air Filter: Anti-Microbial air filter (Filtration efficiency >99 % for 0.3-micron particle)
Controls: Microprocessor
Dry Time: 4 – 30 minutes
Vacuum Pump: Max. vacuum – 82 Kpa; Flow rate 11L/min
Ambient Temp.: 5 ～ 40
Chamber: SUS304
Max working pressure: 2.3bar, Min working pressure: -0.9bar, Design temperature: 140℃
Water Supply System: Build-in water tank easy to clean
Water Tank Capacity: 3.5L
Water Consumption: 0.16L~0.18L in one cycle
Tray Holder: 3 pcs SS Wire Mesh Trays on SS shelf
Noise: <65dB
Consumption: 1950VA
Power Supply: Standard: 220V±10%,50Hz/60Hz; Optional: 110V±10%,50Hz/60Hz.
Wiring Method: Plug
External Size(W*D*H) mm: 540*600*440
Package Size(W*D*H) mm: 610*810*590
Gross Weight (kg): 50 kg (Apprx.)
Note: It is applicable to the altitude below 3000 meters, and the parts need to be changed when the altitude is over 2000 meters.
Certification: ISO Certification, CE Certification, WHO-GMP, US FDA Certification.
Warranty & CAMC: 05 Years Complete Comprehensive Onsite Warranty from the Date of Successful Installation & 05 Years CAMC Post Warranty Period.
Accessories Included: Supplied with Distilled Water Plant of 4 liters Capacity & Working Operation Manual.
Services Provided: Quality Assurance, Installation, Adequate Training & Best After Sales Services.
INTERNAL CODE: - KDSM.2272.241112
