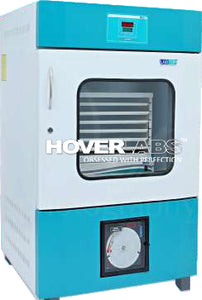

“HOVERLABS” MICRO CONTROLLER BASED PLATELET INCUBATOR
“HOVERLABS” MICRO CONTROLLER BASED PLATELET INCUBATOR
Platelet incubator suitable for 1 x 36/48 agitator (Model: HVO-125)
Platelet incubator suitable for 2 x 36/48 agitator (Model: HVO-250)
Platelet incubator suitable for 2 x 96/4 x 48 agitators (Model: HVO-500)
Inner chamber is made of stainless steel, outer body of mild steel duly powder coated, temperature up to 22°C. With built in micro controlled based Temperature indicator cum controller having audiovisual alarm and 7 days Circular Temperature Chart Recorder. Micro controller-based platelet incubators are designed to store platelet concentrates in continues motion at controlled temperature.
TECHNICAL SPECIFICATION:
Temperature (°C)-22.0
Accuracy (°C)-± 0.5
Voltage-230 V AC/50 Hz
|
MODELS |
HVO-125 |
HVO-250 |
HVO-500 |
|
Volume (Liters) |
125 |
250 |
500 |
|
Inner Size (WxDxH) cms |
59x46x46
|
59x46x92
|
118x46x92
|
|
External Size (WxDxH) cms |
73x72x115
|
73x72x161
|
146x72x161
|
|
Agitator |
1 |
2 |
4 |
SALIENT FEATURES:
-Power socket for platelet agitator
-High quality PT-100 Sensor for better accuracy
-Micro-controller controls the internal temperature within ± 0.5 °C
-Display of set value and process value with Audio Visual Alarm Password protected key-pad lock
-Castor wheels for ease of mobility
-Directional air flow assures quick recovery after door openings
-Chamber illumination with fluorescent light
INTERNAL CODE: - KD. 0-12-1-2-20-15-16
