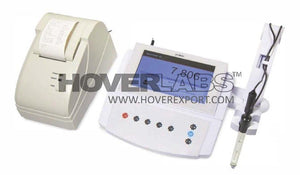

pH Meter-With Thermal Printer (Model No: HVO-PH-15)
pH Meter-With Thermal Printer
Salient Features:
pH
- 1 to 5 points calibration with automatic recognition for USA, NIST, DIN & User Define
- Automatic electrode diagnosis shows the pH slope and zero offset
- Highly accurate analysis at every point
ORP
- 1 point offset calibration allows adjusting the displayed value to a known standard
- Relative and absolute millivolt modes ensure the reliable ORP measurement
General
- Automatic temperature compensation ensures accurate readings over the entire range
- Auto-Read function senses and locks the measurement endpoint
- Interval Readings data can be transferred to a PC or Printer
- High / Low Limit Alarm automatically alerts when reading exceeds the specified range
- Calibration due alarm prompts user to calibrate the meter regularly
- Password protection prevents the unauthorized calibration and settings
- Expanded memory stores or recalls up to 1000 data sets
- Reset function automatically resumes all settings back to the factory default
- Built-in real-time clock stamps stored data to meet GLP Standards
Specification:
- Modes: pH, mV, Temperature
pH
- pH Range: -2.000 to 20.000 pH
- pH Resolution: 0.001, 0.01 (selectable)
- pH Accuracy: ±0.002pH
- Calibration Points: up to 5 points
- pH Buffer Option: USA, NIST, DIN, User define
mV
- mV Range: ±2000mV
- mV Accuracy: ±0.2mV
- mV Resolution: 0.1mV
Temperature
- Temp. Range: 0~105°C/32~221°F
- Temp. Accuracy: ±0.5°C/±0.9°F
- Resolution: 0.1°C/0.1°F
General
- Temp. Compensation: 0~100°C, Manual / Automatic
- Input Impendence: <1012Ω
- Stability: Standard or high-accuracy
- Calibration Due Alarm: 1 to 31 days or off
- Password Protection: Yes, 4 digits
- Memory: 1000 Data Sheets
- Connector: BNC
- Display: 7" (inches) TFT LCD
- Power Requirements: Adaptor, Using AC 220V,50/60Hz
