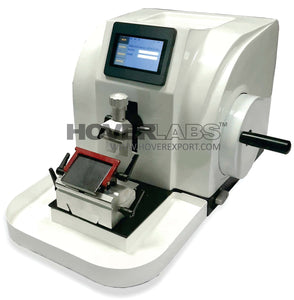

HOVERLABS Semi Automatic Microtome
( Leica Type)
| Model No. – HV-HSM-1090a | Make – HOVERLABS |
TECHNICAL SPECIFICATIONS:
- LCD Display with Feather Touch Keypad
- Section thickness adjustable.
- Cutting/Trimming Mode
- Fast Forward/Backward Function
- Increase/Decrease Section Thickness
- Section Counter/Section thickness display
- Motorized Feed Drive
- Coarse feed speed directions (in both direction) around 300µm/s & 900µm/s
- Ergonomic standard specimen clamp.
- Sturdy knife holder with angle adjustment scale & locking lever.
- Disposable knife holder with lateral displacement feature.
TECHNICAL SPECIFICATION:
Section Thickness Range : 0.5µm-100µm
Setting Values: 0.5µm-2µm in 0.5µm increments.
2µm-20µm in 1µm increments
20µm-100µm in 5µm increments.
Trimming Thickness Range : 1µm-600µm
Setting Values: 1µm-10µm in 1µm increments.
10µm-20µm in 2µm increments
20µm-100µm in 5µm increments.
100µm-600µm in 10µm increments.
Minimum Setting Value: 0.5µm
Object feed: 28mm
Vertical stroke: 60mm
Specimen horizontal feed: 28mm
Specimen Orientation : x-axes and y-axes : universal 8°
Z-axis: up to 360°
Max. Specimen size : 50x50mm.
Operation : Manual.
Weight : 35 kg.
Standard accessories : High profile disposable blades pkt. of 50 nos
