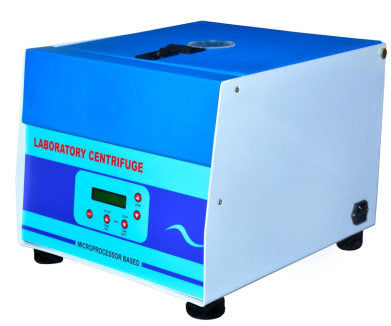

LABORATORY CENTRIFUGE (General Purpose) (Model: HVL-8 Deluxe)

LABORATORY CENTRIFUGE (General Purpose)

(Model: HVL-8 Deluxe)

Technical Specifications:

- Deluxe Model (Microprocessor Based. Digital) 5200 rpm

- Compact laboratory Centrifuge Machine, Microprocessor based digital.

- The body is made of heavy duty C.R.C. construction finished with powder coating.

- Fitted with Universal motor (with carbon brushes) 1/8 H.P.

- It is fitted with 2 lines of 16-character LCD display of rpm, ref for set and run time.

- Programmable speed regulator from 500 to 5200 rpm in interval of 100 rpm.

- Fitted with digital timer to control time 1 to 99 minutes with an interval of 1 min.

-  Additional electronic lid lock which does not allow to open lid when machine is running & opens automatically after centrifuge time is over. Calibration window on lid.

- Dynamic Brake (automatic) & imbalance detector are provided

- Last test parameter recall and displays automatically on LCD.

- To work on 220 Volts 50 Hz AC.

- Dimension of Machine: L= 415 mm W = 360 mm H = 305mm

- Weight of Machine: 21 kg Approx

- Gross Weight of Machine: 24 kg (with box (495mm x 480mm x 380mm)

Special Feature:

- Very Stable

- No vibration

- Double walled lid

- Motor fitted on anti-vibration pad so noise will occur

- Universal motor (Carbon Motor)

- Metallic bowl

- Maximum Capacity 400ml.

INTERNAL CODE: - KD. 12-1-2-25-9-14-4-9-1
