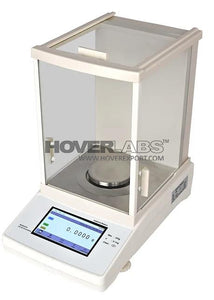

Analytical Balance (MODEL NO. HV-MAB SERIES)

Analytical Balance

(MODEL NO. HV-MAB SERIES)

Technical Specification: -

· Max. (Capacity): 220g

· Readability (d) :0.0001g

· Repeatability: 0.2mg

· Linearity (+/-): 0.4mg

· Min. Capacity: 10mg

· Verification Scale Intervals (e): 1mg

· Calibration: Internal Calibration

· Class: Class I

· Display: 5-inch Touch Screen

· Response Time: 3 - 5 Sec

· Pan Size (mm): 80 mm Ø

· Tare Range: Full

· Operating Temperature: 15°C to 30° C

· Sensitivity Drift (+/-): 2ppm / °C

· Density: Function Available

· Key Sound: Yes

· Weighing Chamber: 240 x 190 x 265 mm

· Unit: g, mg, ct, oz

· Baud rate Options: 1200, 2400, 4800, 9600

· Interface: RS232C

· Power Supply: AC 220V / 50-60 Hz

· Dimension (LxWxH): 475 x 315 x 485 mm

· Weight: 10 Kg approx.

INTERNAL CODE: - KD.25610
