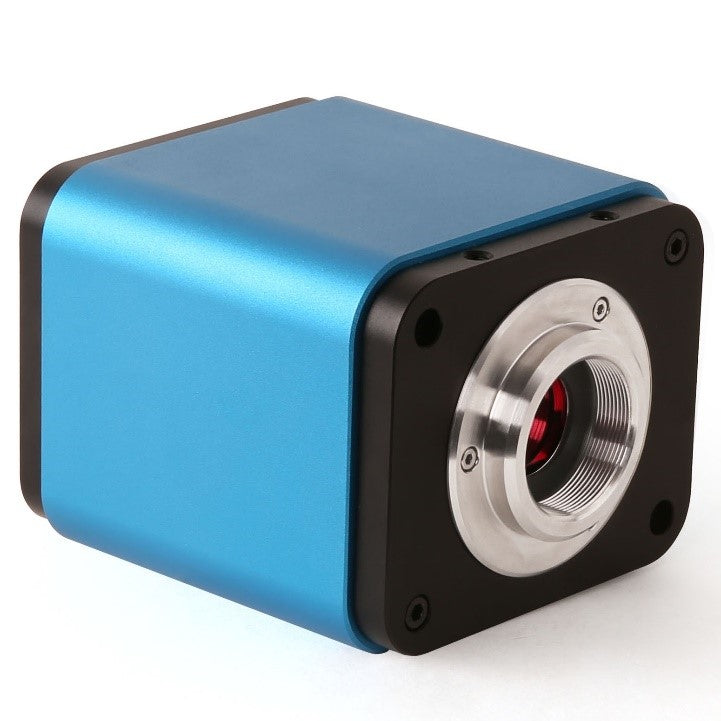

High Resolution HDMI, USB 2.0 Microscope camera with inbuilt software and mouse input, connectable to tv or pc with Sony Sensor (Model No. HV-1080P)

High Resolution HDMI, USB 2.0 Microscope camera with inbuilt software and mouse input, connectable to tv or pc with Sony Sensor (Model No. HV-1080P)


  • Rs. 31,300.00
  • Save Rs. 13,700

This full HD camera can be connected to either PC or TV via HDMI/USB and offers inbuilt image analysis software which
can be controlled via mouse connected to camera and images can be stored in SD card or the user may simply connect with
PC using USB.
Specs:- Sensor- 1080P/Sony IMX290 1/2.8”(5.57x4.13), Pixel: 2.9x2.9um, 60Fps HDMI/26Fps USB, Built in Camera Software
and mouse output

1.1.2 MAX-1080Pê Basic Characteristics
MAX-1080P is a multiple interfaces (HDMI+USB2.0+SD card) CMOS camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+USB2.0 are used as the data transfer interface to HDMI display or computer.
For HDMI camera mode, The IMAGEView will be loaded and the Camera Control Panel+ Measurement Toolbar and Synthesis Camera Control Toolbar are overlaid on the HDMI screen when the mouse move to the related region, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video and perform the measurement ital.
For USB Video camera mode, plug in the micro USB host cable to the cameraês USB Video port and computer USB port, then the video stream can be transfer to computer with the advanced software IMAGEView. With IMAGEView, you can control the camera, process the video and image as our other USB series camera.
The MAX-1080Pê basic characteristics are as follows:
For HDMI output:
_ All in 1( HDMI+USB+SD card) C-mount camera with Sony high sensitivity CMOS sensor;
_ Simultaneous HDMI & USB output;
Order Code Sensor & Size(mm) Pixel(_m) G Sensitivity
Dark Signal FPS/Resolution Binning Exposure
1080P/Sony IMX290
1/2.8”(5.57x4.13) 2.9x2.9 1300mv with 1/30s
0.15 mv with 1/30s 60@1920X1080P
(USB) 1x1 0.036ms~8s
Interface & Button Functions
USB Mouse USB Mouse for the Control of the HDMI Mode
USB Video USB Video for the PC
SD SD Card Slot
DC12V 12V/1A Power in
ON/OFF Power ON/OFF Switch
Other Specification for HDMI Output
UI Operation With USB Mouse for HDMI Mode
Image Capture High Speed in SD Card(8G)
Video Record 1080P 26fps in SD Card(8G)(AVI Format in SD Card)
Camera Control Panel Including Exposure, Gain, White Balance, Color Adjustment and Sharpness Control
Toolbar Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function
Other Specification for USB Output
White Balance Auto White Balance, Manual White Balance, ROI White Balance( )
Color Technique Ultra-FineTM Color Engine (USB2.0)
Capture/Control API Standard UVC for Windows(USB2.0)
Recording System Still Picture or Movie (HDMI or USB)
Software Environment (for USB2.0 Connection)
Operating System Microsoft Windows XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit)
OSx(Mac OS X)
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory:4GB or More
USB Port:USB2.0 High-speed Port
Display:19” or Larger
Operating Environment
Operating Temperature(in Centidegree) -10~ 50
Storage Temperature(in Centidegree) -20~ 60
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 12V/1A Adapter

_ Built-in mouse control;
_ Built-in image capture & video record to SD card;
_ Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color adjustment, sharpness control;
_ Built-in video and image measurement;
_ Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions;
_ Built-in image & video browsing, display & play;
_ Real time clock(RTC)
For USB Video mode:
_ Ultra-Fine color engine with perfect color reproduction capability(USB);
_ With advanced video & image processing application IMAGEView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
_ Support standard UVC protocol for Windows/Linux/Mac(USB);
_ CNC precision machining shell;
The possible applications of MAX-1080P are as follows:
_ Scientific research, education (teaching, demonstration and academic exchanges);
_ Digital laboratory, medical research;
_ Industrial visual (PCB examination, IC quality control, mechanical part measurement);
_ Medical treatment (pathological observation);
_ Food (microbial colony observation and counting);
Aerospace, military (high sophisticated weapons);
