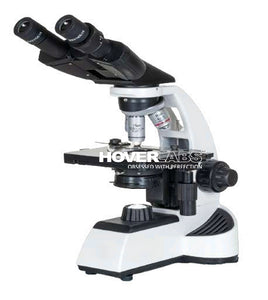

ADVANCED BINOCULAR MICROSCOPE (Model: HOX-700)

ADVANCED BINOCULAR MICROSCOPE

(Model: HOX-700)

Technical Specifications: -

-Optical System: High Contrast Finite Plan Color Corrected Optical System.

-Stand: Ergonomically designed sturdy Aluminum Die cast body with high quality pai. With window in the arm, extended base with hand rest for enhanced comfort and stability.

-Magnification: 40x to 1000x visual magnification.

-Viewing Head: 360° rotatable 30° inclined Seidentopf Binocular Head, Interpupillary distance - 50-75mm, Di-Electric coated prisms (Optional: Trinocular Head).

-Eyepieces: High focal eye point paired Wide field 10x/18mm eyepieces with anti-reflection & anti-fungal coatings, lockable. Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops. Optional Quintuple.

-Mechanical stage: Double plate stage size 142 x 133mm, X/Y travel range 80mm x 60mm. Low drive right hand movement controls. Ceramic coated surface for scratch resistance. Double specimen stainless steel clip.

-Objectives: High performance Semi-PLAN/ PLAN HOX series DIN objectives 4x (N.A. 0.10, W.D. 25mm), 10x (N.A. 0.25,W.D. 6.9mm), 40x (SL, N.A. 0.65, W.D. 06mm) and 100x (SL, Oil, N.A. 1.25,W.D. 0.17mm) . Antifungal, anti-reflection coated.

-Condenser: Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with frosted white/Blue filter. Antifungal and antireflection coated. Rack and pinion movements on stainless steel guides.

-Focusing: Coaxial coarse and fine focusing on gear system for smooth operation. Fine adjustment scale 0.02mm/rotation with maximum 2-micron scale increment.

-Illumination: Advanced i LED 3W LED illumination with variable intensity illumination control. Up to 100,000 hours of LED life.

-Electronics: Universal input 110V-240V,50/60 Hz with removable power cord. SMPS circuit for flicker free illumination.

Accessories (Optional):

Pointers & Micrometer reticules

Wooden box

Auxiliary objectives and eyepieces

Slider/Turret Type Phase Contrast attachment

Polarizing attachment

Single filter/ Dual filter Fluorescent attachment

Dark Field attachment

Application specific USB/HDMI cameras

Package Contents:

10ml Immersion

oil bottle User manual

Nylon dust cover & cleaning cloth

Styrofoam casing

INTERNAL CODE: - KD.PRV/25715
