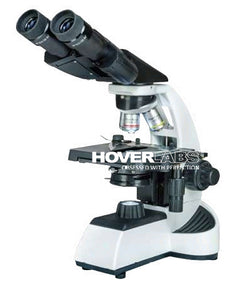

BINOCULAR PRO ∞ MICROSCOPE (Model: HOX-700)

BINOCULAR PRO ∞ MICROSCOPE

(Model: HOX-700)

Technical Specifications: -

Optical System: Universal high Contrast Infinity Plan Color Corrected Optical System.

Stand: Ergonomically designed sturdy Aluminum Die cast body with high quality pai. With window in the arm, extended base with hand rest for enhanced comfort and stability.

Magnification: 40x to 1000x visual magnification.

Viewing Head: 360-degree rotatable compensation free 30 deg. inclined Siedentop Binocular/Trinocular Head with IPD 50-75mm with multi-layer Anti-fungal and anti-reflection coating.

Eyepieces: Focusable & lockable Wide field 10x/20mm paired eyepieces with eye guards, Diopter adjustment + -5, having multi-layer anti reflection and anti-fungal coatings.

Nosepiece: Reversed revolving quadruple nosepiece (Ball bearing type) with click stops, optional: Quintuple nose-piece.

Mechanical stage: Double plate stage (ball bearing type) size 140 x 140 mm, X/Y travel range 80mm x 70mm. Built in Low drive right hand Coaxial movement controls, graduated scale and vernier’s scale reading 0.1mm. Hard coated surface for scratch resistance. Double specimen stainless steel slide holder.

Objectives: HOX series PLAN color Corrected Achromatic objectives 4x/NA 0.10 (WD 15.9mm), 10x/NA 0.25(WD 17.4mm), 40x/NA 0.65 (SL) (WD 0.5mm) and 100x/NA 1.25 (SL, oil) (WD 0.15) with multi-layer Antifungal and anti-reflection coating.

Condenser: Sub stage abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap in frosted Day and Light filters (white/Blue filter). Slot for contrast slides available. Rack and pinion movements on stainless steel guides with multi-layer Anti-fungal and anti reflection coating.

Focusing: Coaxial coarse and fine focusing on gear system for smooth operation. Fine adjustment scale value 0.002mm with maximum 2 micron scale increment and vertical stroke movement on Z-axis 25mm with tension control ring.

Illumination: Advanced i LED 3W LED illumination with variable intensity illumination control. Up to 100,000 hours of LED life.

Accessories (Optional):

Pointers & Micrometer reticules

Wooden box

Auxiliary objectives and eyepieces

Slider/Turret Type Phase Contrast attachment

Polarizing attachment

Single filter/ Dual filter Fluorescent attachment

Dark Field attachment

Application specific USB/HDMI cameras

Package Contents:

10ml Immersion oil bottle

User manual

Nylon dust cover & cleaning cloth

Styrofoam casing

INTERNAL CODE: - KD.PRV/25716
