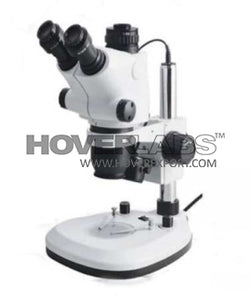

DIGITAL STEREO ZOOM MICROSCOPE (Model: HVS-ZZM-785)

DIGITAL STEREO ZOOM MICROSCOPE

(Model: HVS-ZZM-785)

The model reflects high performance engineering. Demonstrating yet again, HOVERLABS unwavering focus on delivering superb value, with a super white bright light emitting diode illumination system & high-quality optics, the model addresses the needs of modern biology programs as well a host of quality control and industry inspection criteria.

Technical Specifications: -

Optical System: Greenough

Zoom Ratio: 1:10

Viewing Body: Integrated Binocular/Trinocular head with 45° 50-75mm IPD adjustment

Working Distance: 110mm

Magnification Range: 0.65x to 6.5x continuous

Eye-piece: 10x paired eye-piece with 22mm field of view

Eye Guards: Rubber, Retractable

Illumination Control: 3.3-Watt Incident / Transmitted ("Oblique" Setting) / Combined illumination control buttons with rheostat dial for light intensity control 3.3 Watt -30° oblique illumination and variable intensity control dial Approx 25,000 hours

Incident Light: 3.3-Watt Incident / Transmitted ("Oblique" Setting) / Combined illumination control buttons with rheostat dial for light intensity control 3.3 Watt -30° oblique illumination and variable intensity control dial

LED Service Life: Approx 25,000 hours

Light Quality: Homogeneous daylight (6500°K), free of UV and IR emissions

Power Supply: Universal 100V-240V, 50/60Hz integrated power supply with voltage flux stabilizer Package Contents: Power Cable (6ft), Nylon Dust Cover & Cleaning Cloth, Styrofoam casing, Warranty CardAccessories (Optional): Pointers & Micrometer Reticules, Polarizing Kit, 05x, 0.75x, 1.5x & 2x Auxiliary Objective, 20x & 25x Wide Field eye-pieces, Dark Field Kit with Gem Tweezer, Camera Attachment from 0.35MP to 14MP, Image Analysis Software, Heating stage with PID, CFL & LED Ring Light, Wooden Storage Box

INTERNAL CODE: -KD.2332.2572
