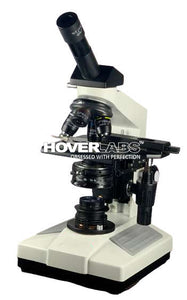

MONOCULAR MICROSCOPE (Model: HOX-20)

MONOCULAR MICROSCOPE

(Model: HOX-20)

Technical Specifications: -

• Optical System: Finite optical system.

• Stand: Ergonomically designed sturdy stand with anti-rust material. Extended base for better stability.

• Magnification: 40x to 1000x for visual observation.

• Eyepiece tube: Monocular head 45°, 360° rotatable.

• Eyepiece: Widefield eyepieces 10x, FOV 18mm. Antifungal and antireflection coated.

• Nosepiece: Precise quadruple nosepiece (Ball bearing type) with click stops and rubber grip.

• Mechanical stage: Single plate stage size 140mm X140mm. X/Y travel range 90mm X 65mm. Low drive right side movement controls. Ceramic coated surface for scratch resistance.

• Objectives: HOX series JIS Achromatic objectives 4x (N.A. 0.10, W.D. 25mm), 10x (N.A. 0.25, W.D. 6.9mm), 40x (SL, N.A. 0.65, W.D. 06mm) and 100x (SL, Oil, N.A. 1.25, W.D. 0.17mm). Antifungal, anti-reflection coated.

• Condenser: Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm. Swing-in and swing-out filter holder.

• Focusing Control: Separate coarse and fine focusing on gear systems for smooth operation. Fine 0.2mm/rotation with maximum 2-micron scale increment.

• Illumination: LED 3W 3V illumination or Halogen 6v-20W with variable control.

• Electronics: Universal input 110V - 240V AC, 50/60 Hz.

• Warranty: One year against manufacturing defects.

Accessories (Optional):

• Pointers & Micrometer reticules

• Wooden box

• Auxiliary objectives and eyepieces

Package Contents:

• 10ml Immersion oil bottle

• User manual

• Nylon dust cover & cleaning cloth

• Styrofoam casing

INTERNAL CODE: -KD.PRV/2579
