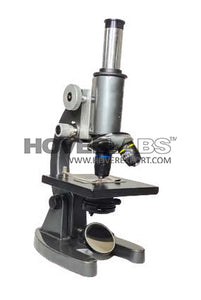

MONOCULAR MICROSCOPE (Model: HOX-7)

HOVERLABS

MONOCULAR MICROSCOPE

(Model: HOX-7)

Technical Specifications: -

• Stand: Hinged type sturdy stands with horse shoe base.

• Viewing Head: Monocular 90 Degree.

• Eyepiece: Huygenian 15x,10x.

• Nosepiece: Triple, upright with rubber grip.

• Objective: HOX Series JIS Semi-Plan 10x, 40x (SL). Anti-fungal & anti-reflection coated.

• Mechanical Stage: 120x120mm with clip.

• Focusing Movement: Separate coarse and fine movement.

• Condenser Moveable: Moveable Abbe N A 1.25 with Iris diaphragm.

• Light Source: Plano-concave mirror.

• Optional LED sub stage lamp. Carrying Case: Styrofoam packing.

• Supplied with: Manual & dust cover.

• Optional Accessories: Wooden carrying case, LED lamp, WF10X.

• Warranty: One year against manufacturing defects.

INTERNAL CODE: -KD.PRV/2578
