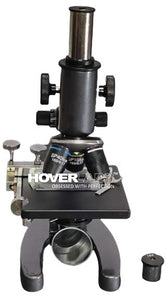

MONOCULAR MICROSCOPE (Model: HOX-9)

MONOCULAR MICROSCOPE

(Model: HOX-9)

Technical Specifications: -

• Stand: Hinged type sturdy stands with horse shoe base.

• Viewing Head: Monocular 90 Degree

• Eyepiece: Huygenian 15x,10x

• Nosepiece: Triple, upright with rubber grip.

• Objective: High performance S-Plan Achromat JIS objectives. 10x, 40x (spring loaded) and 100x (SL) Oil. Antifungal and anti-reflected treated.

• Mechanical Stage: 120x120mm with XY movement

• Focusing Movement: Separate coarse and fine movement.

• Condenser: Moveable Abbe N.A 1.25 with Iris diaphragm.

• Light Source: Plano concave mirror. (Optional LED sub stage lamp).

• Filter: Blue

• Carrying Case: Styrofoam packing

• Supplied with: Manual & dust cover

• Optional Accessories: Wooden carrying case, LED lamp, WF 10x.

• Warranty: One year against manufacturing defects.

INTERNAL CODE: -KD.PRV/2578
