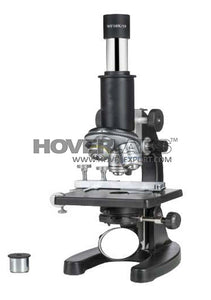

MONOCULAR MICROSCOPE (Model: HOX-9s)

MONOCULAR MICROSCOPE

(Model: HOX-9s)

Technical Specifications: -

• Stand: Hinged type sturdy stand with horse shoe base.

• Viewing Body: Monocular straight tube, 90° inclined.

• Eyepieces: WF 10x/18mm and Huygenian 15x Eyepiece, antifungal and anti-reflection treated.

• Nosepiece: Precise quadruple nosepiece (Ball bearing type) with click stops and rubber grip.

• Objectives: High performance S-Plan Achromat JIS objectives 10x,

40x (spring loaded) and 100x (spring loaded, oil), antifungal and antireflected treated.

• Mechanical stage: Single plate 120 x 120mm with bolted XY mechanical stage, Hard coated surface for scratch resistance.

• Condenser: Sub stage Abbe condenser NA 1.25 with Iris diaphragm.

Rack and pinion movements on metal guides.

• Focusing: Smoothly operated separate coarse and fine focus system.

• Illumination: Adjustable plano concave mirror. Optional LED sub

stage lamp.

• Warranty: One year against manufacturing defects.

Accessories (Optional):

-Pointers & Micrometer reticules

-Wooden box

-Auxiliary objectives and eyepieces

Package Contents:

-10ml Immersion oil bottle

-User manual

-Nylon dust cover & cleaning cloth

-Styrofoam casing

INTERNAL CODE: -KD.PRV/2578
