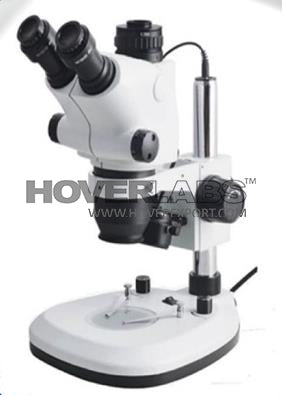

STEREO ZOOM MICROSCOPE (MODEL NO. HVS-ZZM-785)

STEREO ZOOM MICROSCOPE

(MODEL NO. HVS-ZZM-785)

Technical Specification: -

1. Diopter adjustment ring on ocular tube and inter pupillary distance from 55mm to 75mm. Vertical Phototube for microphotography

2. Microscope should have wide filed 1Ox paired FOV 2.0 - 22 mm eyepiece.

3. Zoom range and ratio : zoom 0.65 X to 6.5 X with magnification ratio 1: 6.4 or higher

4. Magnification range: 6.5X to 65X with working distance: 100 mm or higher.

5. Lateral zoom control movement. Incident 3W LED with intensity control knob. On/off switch. Clip for holding specimen. LED service like: approx. 25000 hrs.

6. Base size is 285 mm or higher X 238mm or higher x 40 mm or higher

7. System should come with Operating manual, Dust cover, cord and plug.

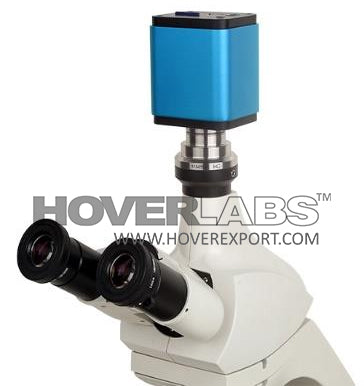

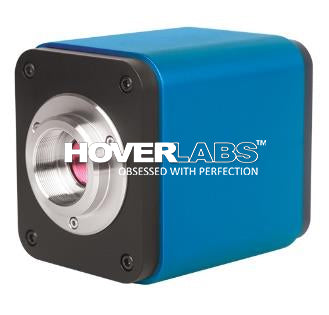

8. System should have Digital 5 Mega pixels Camera for microphotography with Image Analysis software.

9. System should have digital LCD with given specification. 10" screen, high resolution colour display LCD.

Built- in HOMI Camera with 5 0 Megapixel resolutions.

Pre-Loaded Capture & Measurement software

Fully Resolution Image Capture

Fully Resolution video 30 FPS @ 1024 x 768

LCD screen can be rotated at 360, 90 vertically. Output ports: one HDMI. One USB 2.0. TF Cam

INTERNAL CODE: - KD.25610
