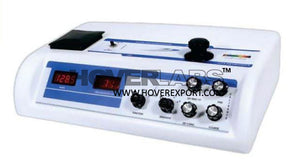

DIGITAL SPECTROPHOTOMETER (MODEL NO. HVS-DS91)
DIGITAL SPECTROPHOTOMETER
(MODEL NO. HVS-DS91)
PRODUCT FEATURES: -
✓ Range 340 to 960 nm
✓ Dual Digital Display for Wa¼velength & Data
✓ Wavelength Resolution 1 nm
✓ Highly Stable & Accurate
✓ Direct Concentration Facility
✓10mm,50mm &100mm path length
ACCESSORIES: -
✓ Cuvettes (10mm): 2 Nos.
✓ Cuvettes (10 mm & 50 mm): 2 Nos.
✓ Dust Cover: 1 No.
✓ Operation Manual
Technical Specification: -
• Range- 340 to 960nm
• Resolution- 0.1% T, Abs: 0.001, Conc.: 1
• Output- % T: 0 to 100%, Abs: 0 to 1.999, Conc.: 0 to 1999
• Detector- Silicon Photodiode
• Light source- 6 V, 10 W, Tungsten Halogen Lamp
• Monochromator - 600 lines/mm holographic grating
• Sample holder- 10 mm, 50 mm & 100mm path length
10 mm Cuvette holder
10 mm & 50 mm Cuvette holder
• Spectral bandwidth- 5 nm
• Wavelength resolution- 1 nm
• Wavelength accuracy- ± 2.5 nm
• Repeatability- ± 2 nm
• Display- 3½ Digit Bright Red LED Dual Display for Data & Wavelength
• Operating temp range- 5°C to 45°C
• Power - 230 V±10% AC, 50 Hz
• Dimensions (LXBXH)- 475 x 285 x 130 mm (Approx.)
• WEIGHT- 8.5 Kg. (Approx.)
INTERNAL CODE: - KD.25612
