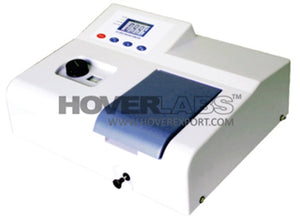

SINGLE BEAM MICROPROCESSOR UV-VIS SPECTROPHOTOMETER (Model: HVL-29)

SINGLE BEAM MICROPROCESSOR UV-VIS SPECTROPHOTOMETER

(Model: HVL-29)

Range 195 to 1000 nm with facility for automatic concentration, % Transmission, Absorbance & K Factor measurement. It has sample holder with 4 position selector control for 10 mm path length cuvettes. Facility has been provided for interface with any printer (RS232). Set of 2 quartz and 4 glass cuvettes is provided. SOFTWARE INCLUDED

Technical Specifications: -

- Wavelength Range- 200-1020 nm

- Spectral Bandwidth- 4 nm

- Optical System -Single Beam, grating 1200 lines/mm

- Wavelength Accuracy-± 1 nm

- Wavelength Repeatability- 2.0 nm

- Wavelength Resolution-2.0 nm

- Photometric Accuracy- ±0.5%T or 0.003 A@1A

- Photometric Range - 0.3 to 2A, 0-200 %T, 0-9999 Conc.

- Stray Light-< 0.3 %T

- Stability- ± 0.002 A/h @500 nm

- Display-LCD

- Keyboard-Soft Touch Membrane Keys

- Detector-Silicon Photodiode

- Light Source-Tungsten and Deuterium Lamps

- Power-230 V±10% AC, 50 Hz

INTERNAL CODE: - KD. -2302.25619
