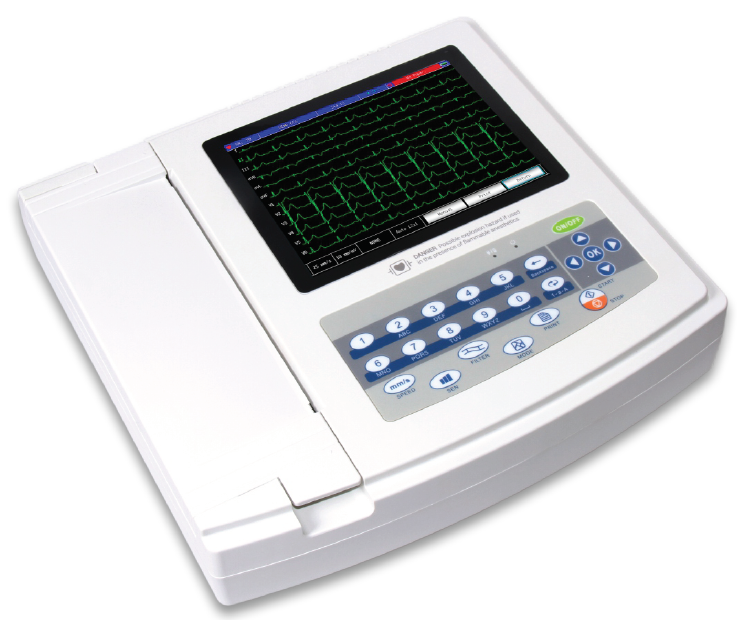

12 Channel Resting ECG System Machine (Model No. HV-ECG-12)

12 Channel Resting ECG System Machine (ECG Machine)

Features:

• High resolution 8 inch color TFT with touch screen
• Suitable for clinics, hospitals and out door camps
• On screen display of 12 channel ECG with interpretation
• Compact, light weight and portable with carry handle
• Lead-off and printer paper out indication
• LED indicators for charging and AC/DC operation
• In-built thermal printer with auto and manual mode
• Digital filters to eliminate baseline drift, AC and EMG interface
• Isolation protection against defibrillation
• Soft touch alphanumeric and on screen virtual pop-up keyboard for data input

Technical Specifications:

ECG
A/D Resolution : 24 bit
Lead selection : Standard 12 leads
Notch filter : 50/60 Hz
Noise level : ≤12 μVp-p
Acquisition : Auto / Manual
Memory : 1000 Patients
Input impedance : ≥ 50 M Ohm (10Hz)
Frequency Response : 0.05 to 150 Hz
CMRR : > 60 dB, > 100 dB
Time Constant : ≥ 3.2 sec
Sensitivity : 2.5, 5, 10, 20, 40 mm/mV
Measurement : HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5) amplitude, S(V1) amplitude, R(V5)+S(V1) amplitude

Display
Display Format : Twelve Channel
Graphics Display : 800 x 600 pixels TFT touch screen (color)
Display Size : 8 inch
On screen display : 3/6/12 lead ECG, HR value, print mode, sensitivity, paper speed, filter, time, battery indication, background grid lines, measure data and interpretation

Recording and Printing
Recorder : Thermal Printer
Paper Speed : 25, 50 mm/sec (Auto / Rhythm) 5, 6.25, 10, 12.5, 25 and 50 mm/sec  (Manual)
Recording paper : Thermo sensitive 210 mm × 20 m (Rolled)
Printing Labels : Patient Information Template, Leads, Calibration, Print Speed, Filter,
Sensitivity
Print-out Format : Auto and Manual mode

Power Supply
Line Power supply : AC 110 - 240V, 50Hz
Power Supply Operation : AC/DC with On / Off line Battery charging
Battery : 14.8 V / 3700 mAh, Li-ion rechargeable
Battery backup : 10 hrs. standby time, 3 hrs. continuous print, 300 ECG wave form recording
Input Power : ≤ 150 VA

General
Data input : Touch screen and function buttons
Communication Interface : USB
Type of Protection : Class I
Degree of Protection : Type CF

Physical
Dimensions : 340 x 320 x 85 mm
Weight : 3.2 Kg

Environmental Conditions

Operation
Temperature : 5°C to 40°C
Humidity : ≤ 80% non condensing
Atmospheric pressure : 700 to 1060 hPa

Storage
Temperature : 1°C to 50°C
Humidity : ≤ 93% non condensing
Atmospheric pressure : 500 to 1060 hPa
