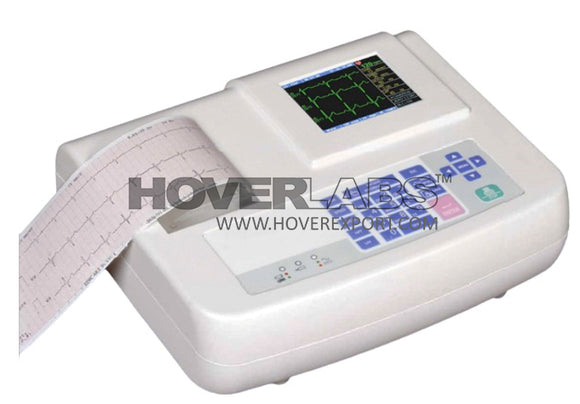

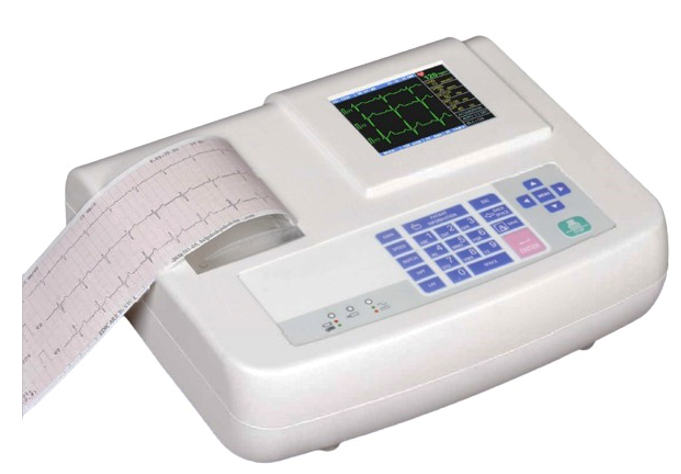

3 Channel ECG Machine (Electrocardiograph) (Model No. HV-ECG-301)

3 Channel ECG Machine (Electrocardiograph)
Resting ECG System With Color Display

Features:

Value for Money-
Most economical high performance electrocardiograph.

Easy to use-
One touch operation for acquisition, analysis & printing that minimizes training needs.

Reliability-
Suitable for high volume hospital use.

Connectivity

• Capable of communicating with PC for further viewing and management of ECG
  data.
• Simultaneous acquisition of all 12 leads.
• High Resolution Graphic TFT (Color) display for onscreen preview of ECG waveform.
• Full alphanumeric keypad to enter patient and clinic information.
• Digital filters to eliminate baseline drift, AC & EMG interference.
• Isolation protection against defibrillation.
• Real-time clock for date and time indication.
• Paper-out Indication.
• Printing options i.e: Rhythm lead, medians, enlarge median, Graphical Axis, Measurements & Interpretation.
• Internal ECG data Storage of upto 50 patients.
• Unlimited data storage through USB memory stick (optional).
• Offline ECG data transfer to PC (optional).
• Direct A4 ECG printing (optional).

Technical Specifications:

ECG
A/D Resolution : 12 Bit
Lead selection : Standard 12 leads
Filters : Low pass filter: 20,35,40, 130 Hz.
            High pass filter: 0.05, 0.10, 0.50 & 1.0 Hz
            Notch filter 50/60 Hz
Acquisition : Auto / Manual
Memory : 50 Patients
Input impedance : >100 M ohm
Frequency Response : 0.05-150 Hz
CMRR : 100 dB
Time Constant : 3.2 sec
Sensitivity : 5 mm/mV, 10 mm/mV, 20 mm/mV
Leakage Current : < 10 micro Ampere

Display
Display Format : Three Channel
Graphics Display : 320 X 240 pixels TFT screen (color)
Display Size : 3.5"

Recording & Printing
Recorder : Thermal Printer
Paper Speed : 12.5mm/sec., 25mm/sec.,50mm/sec
Recording paper : Thermo sensitive 80mm (Rolled)
Printing Labels : Patient Information Template, Leads, Calibration, Print Speed, Filter, Sensitivity
Print-out Format : A) Auto mode - 3, 3+R with medians, 3+R with medians + Axis + measurements & interpretation
B) Manual mode - 3 channel three different lead selected from Keypad

Power Supply
Line Power supply : ~ 220 - 240V, 50Hz ± 10%
Power Supply Operation : AC/DC with on / Off line Battery charging
Battery : 11.1 V / 2600 mAh, Li-ion rechargeable
Charging Time : 3 Hours

Mechanical
Dimensions (mm) : 288 mm X 238 mm X 85 mm
Weight : 1.8 Kg approx.

General
Type of Protection : Class II A
Degree of Protection : Type BF
Communication Interface : USB

Safety & Regulatory

Standards
EN ISO 14971 :2000 + A 1 :2003, EN ISO 13485:2003, EN 980:2003,
EN 60601-1 :1990/A 1 :1993, EN 60601-1-2:2001, EN 60601-2-25:1995,
EN 60601-2-51 :2003

Directives
MOD - 93/42/EEC
EMC - 89/336/EEC
