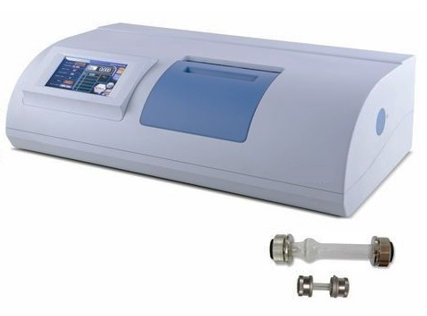

Automatic Digital Polarimeter - Touch Screen (Model No. HV-ADP-45)

Automatic Digital Polarimeter - Touch Screen

Salient Features:

• Touch screen color display
• Temperature display
• Faraday magneto-optical modulator
• Polarizer Polarizing film
• Digital Polarimeter based on Optical null principle
• No warm-up time is required when instrument is switched on

Specifications:

• No. of Measuring Mode (4): Optical Rotation, Specific Rotation, Sugar, Concentration

Measuring Mode: Rotation

• Measuring range: -45° +45°
• Unit: Angle°
• Resolution: 0.001°
• Accuracy: ±0.01°

Measuring Mode: Sugar

• Range: ±120Z
• Unit: Z
• Resolution: 0.01°Z
• Accuracy: ±0.02°Z

Measuring Mode: Concentration

• Range: 0-99.9g/ml
• Unit: g/100 ml
• Resolution: 0.1mg/ml
• Accuracy: ±0.5g/100ml
• Display: 8" Colour data matrix Touch Screen
• Sample transmittance: >1%
• Light Source: LED (2.4V, 1W, 5000hours)
• Operation Wavelength: 589.3nm
• Length of Test Tube: 100mm & 200mm
• Interface: USB & RS232C
• Dimension LxWxH(mm): 850 x 470 x 380mm
