Product details

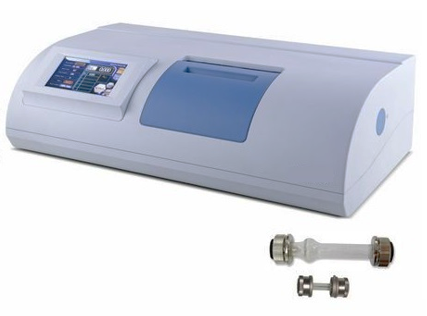

Automatic Digital Polarimeter - Touch Screen
Salient Features:
- Touch screen color display
- Temperature display
- Faraday magneto-optical modulator
- Polarizer Polarizing film
- Digital Polarimeter based on Optical null principle
- No warm-up time is required when instrument is switched on
Specifications:
- No. of Measuring Mode (4) : Optical Rotation, Specific Rotation, Sugar, Concentration
Measuring Mode: Rotation
- Measuring range: -90° +90°
- Unit: Angle
- Resolution: 0.001°
- Accuracy: ±0.004°
Measuring Mode: Sugar
- Range: ±259°Z
- Unit: Z
- Resolution: 0.001°Z
- Accuracy: ±0.004°Z
Measuring Mode: Concentration
- Range: 0-100g/ml
- Unit: g/100 ml
- Resolution: 0.1mg/ml
- Accuracy: ±0.5g/100ml
- Temperature control: Peltier (Built In)
- Temperature control range: 10-50°C
- Accuracy: ±0.1°C & ±0.2°C
- Constant temp. test tube: 100 mm
- Memory: 5000 data sets
- Display: 8" Colour data matrix Touch Screen
- Sample transmittance: >0.1%
- Light Source: LED (2.4V, 1W, 5000hours)
- Operation Wavelength: 589.44nm
- Length of Test Tube: 100mm & 200mm
- Interface: USB Ethernet
- Dimension LxWxH(mm): 745 x 410 x 295mm
