Product details

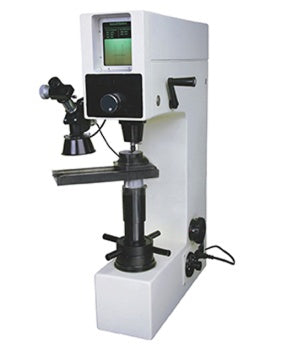

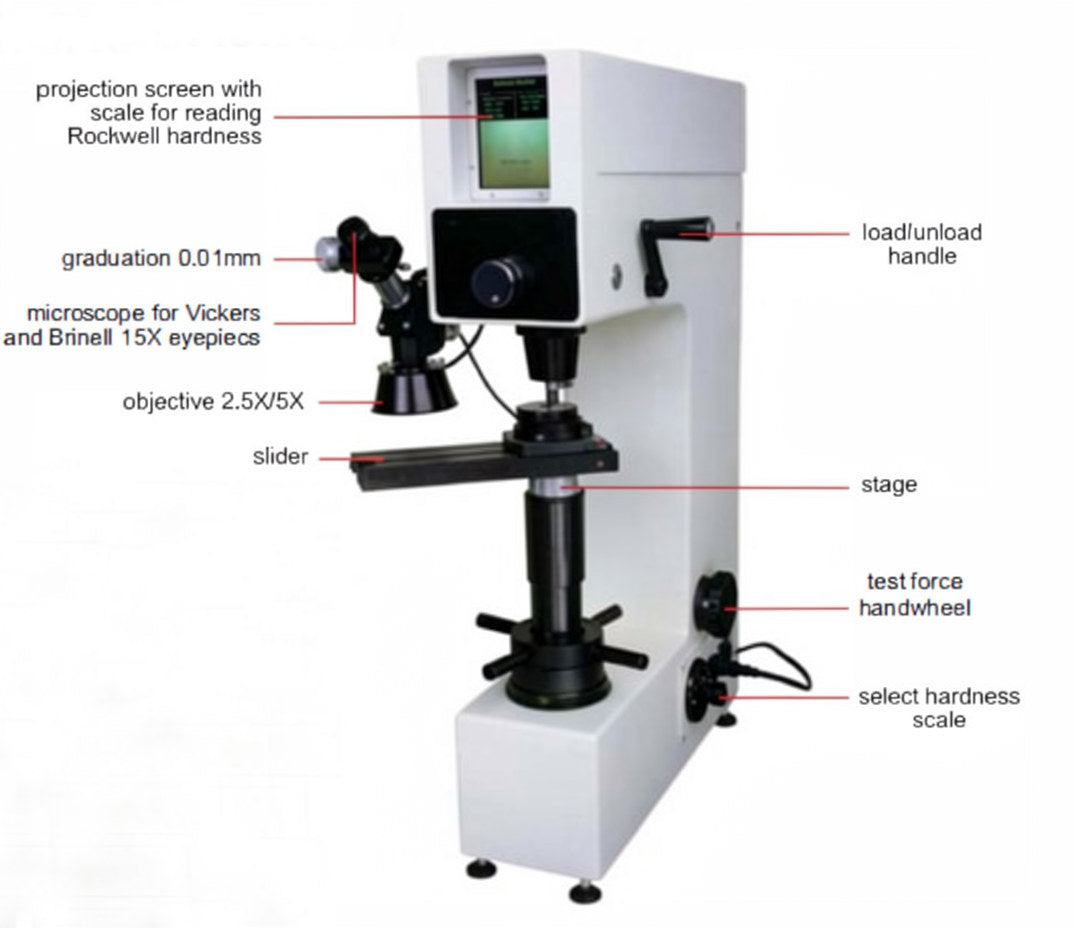

Brinell/Rockwell/Vickers Hardness Tester
Specification:
- Rockwell Test Load: 98N preload, 588, 980, 147 1N total load
- Min. Rockwell Reading: 0.5HR
- Brinell Test Load: 306, 613, 1839N
- Vickers Test Load: 294N
- Stage Elevation: Manual
- Load Control: Manual
- Magnification of Microscope: 37.5X/75X
- Max. Workpiece Height: 180mm
- Max. Workpiece Depth: 200mm (from the center of indenter to the wall of main body)
- Power Supply: 220V, 50/60Hz
- Dimension: 546x300x767mm
- Weight: 90kg
Standard Delivery:
- Main Unit: 1Pc
- Ø1.5875 DIA Carbide Ball Indenter: 1Pc
- Diamond Rockwell Indenter: 1Pc
- Ø5mm Brinell Indenter: 1Pc
- Ø2.5mm Brinell Indenter: 1Pc
- Vickers Indenter: 1Pc
- Ø60mm DIA Flat Anvil for Rockwell: 1Pc
- Ø150mm Flat Anvil for Rockwell: 1Pc
- V-Type Anvil for Rockwell: 1Pc
- Ø60mm Flat Anvil for Vickers and Brinell: 1Pc
- V-Type Anvil for Vickers and Brinell: 1Pc
- Hardness test Block HRB88-95: 1Pc
- Hardness test Block HRC60-65: 1Pc
- Hardness test Block HRC20-30: 1Pc
- Hardness test Block 400-500HV30: 1Pc
- Hardness test Block 180-300HBW2.5/187.5: 1Pc
- Anti-dust Cover: 1pc
