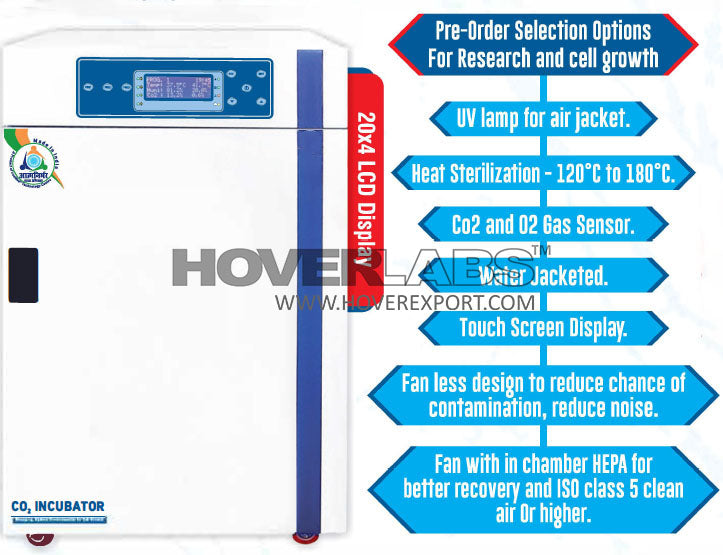

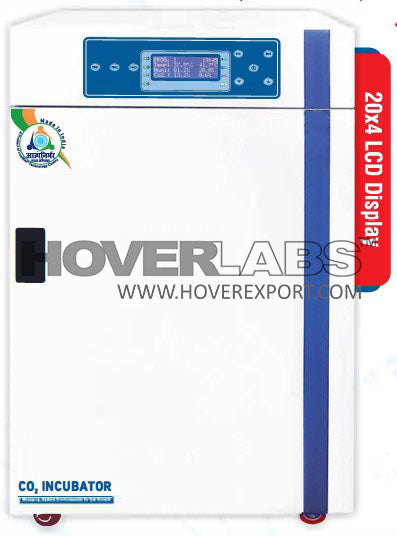

CO₂ Incubator (Model: HVO-C170)

'HOVERLABS’ Carbon Dioxide (CO₂) Incubators provide optimal growing conditions and contamination prevention for valuable cell cultures. We provide a wide range of CO₂ incubators, ranging from a small capacity and volume to a large-scale capacity cabinet. All the CO₂ incubators are built with the patented Water Jacket and Air Jacket systems, which minimizes the risk of condensation at the present and in the future.

Technical Specifications:

Heating: Air Jacket

• Capacity: 170ltrs
• Temperature Rang: RT +5°C ~ 60°C
• Control Type: Microcomputer Controller
• Display: LCD 20x4
• Temp. Fluctuation: <±0.2°C (at 37°C)
• Temp. Uniformity: <±0.3°C (at 37°C)
• Time Setting: 999h or continuous.
• Alarm: Audible and visual alarm; Over-temperature alarm; C02 Concentration alarm.
• Shelves: 2 pcs/ adjustable
• Material: External cold-rolled steel with painting; internal stainless steel
• Door: With inner door and external door
• CO2 Range: Infrared sensor, range 0-20%
• CO2 Control Resolution: 0.10%
• Humidification Type: Water tank for natural evaporation
• Sterilization Type: UV lamp for air jacket
• Ambient Temp. & Humidity: 18-30°C, suggest 2±2°C; relative humidity <80%
• Caster: Foot master caster
• Consumption: 650W
• Power Supply: AC110/220V±10%, 50/60Hz
• Internal Size(W*D*H) mm: 498*546*678mm
• External Size(W*D*H) mm: 700*666*1101mm
• Packing Size(W*D*H) mm: 790*830*1250mm
• Gross Weight(kg): 109kgs

Heating: Water Jacket

• Consumption: 1000W
• Internal Size(W*D*H) mm: 498*480*722mm
• External Size(W*D*H) mm: 747*654*1260mm
• Packing Size(W*D*H) mm: 780*880*1420mm
• Gross Weight(kg): 146kgs

 Salient Features

• Water tank for humidity in the chamber.
• Air Jacket: Equipped with UV Lamp for sterilizing
• Water jacket: equipped with HEPA filter.
• Equipped with USB port and LCD touch screen, the incubator can save data in real time.
• High quality CO2 gas filter ensures the inside gas quality.
• SMC brand gas circuit valves ensure more stable CO2 concentration and less consumption of CO2 gas.
• Microcomputer controller, LCD displays temperature, CO2 concentration, run-time and timing.
• High quality infrared sensor for accurate CO2 concentration.
• The working chamber adopts round angle structure, easy to clean.

Construction Features

• UV lamp for Air Jacket.
• Heat Sterilization -120°C to 180°C
• CO₂ and 02 Gas Sensor

• Water Jacketed
• Touch Screen Display
• Fan less design to reduce chance of contamination, reduce noise.
• Fan within chamber HEPA for better recovery and ISO classes 5 clean air or higher.
