Combination Square Set (Model No. HVO-2278-180)

Combination Square Set (Model No. HVO-2278-180)

HOVERLABS

  • Rs. 8,591.00
8

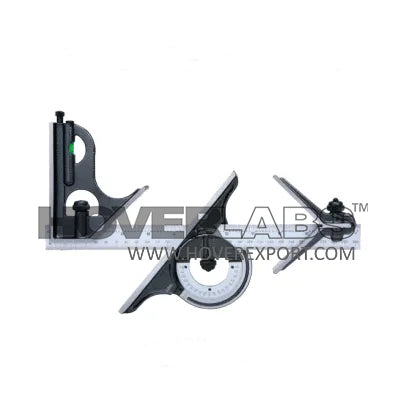

Combination Square Set

Specification:

  • Blade Range: 12″/300mm (Stainless Steel)
  • Blade Graduation: 1/32″ and 0.5mm on front face, 1/64″ and 1mm on back face
  • 4-piece set

Features:

  • Center head (made of cast iron): To locate center of cylinder with diameter (d): 30-100mm Accuracy: ±0.15mm
  • Protractor head (made of cast iron): To set the blade at desired angle to an edge of a workpiece and can be used to measure angles Range: 0-180°, accuracy: ±20min.
  • Square head (made of cast iron): To set the blade at 90° or 45° to an edge of a workpiece
  • Accuracy:
±8min for 90°, Square
±10min for 45° square.
  • Optional accessory: rigid rule
