Product details

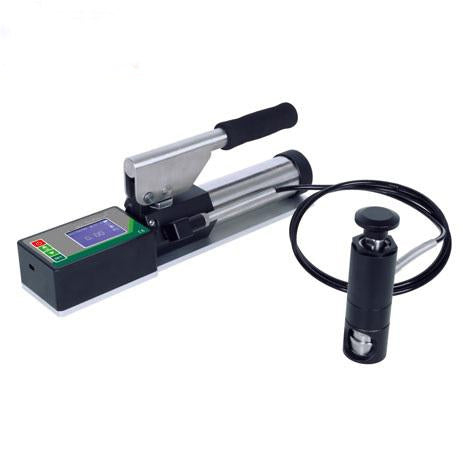

Digital Adhesion Tester
Specification:
- Range: 0-20MPa
- Dolly diameter: ∅20mm
-
Resolution: 0.01Mpa (1psi)
- Accuracy: +-1% full scale
-
Pull-off force: 0.7-20MPa
- Power: Built-in rechargeable lithium battery
- Dimension LWH: 360x75x115mm
- Weight: 3kg
Features:
- Pull-off test
- Built-in rechargeable lithium battery, no need external power source
- Portable design, can be used anywhere
- Standard USB interface, can directly transmit the stored data to computer, no need to install software
- Conforms to GB/T 5210, ASTM D4541/07234, ISO 4624/16276-1
- Store all test results, includes maximum pull-off force, pull-off rate, dolly size and time
- Built in real-time clock, all saved data have corresponding date and time
- Selectable four different sizes dolly for different resolution and testing range
- No need conversion, the instrument can calculate pull-off force according to the dolly size
- Get the testing results from LCD directly
- Two units MPa and psi for selection and can be converted automatically
Standard Delivery:
- Main Unit: 1Pc
- ∅20mm Dolly: 20Pcs
- Cutting tool for ∅20mm Solly: 1Pc
- Charger: 1Pc
- USB cable: 1Pc
- Glue gun: 1Pc
- 3M Glue: 1Pc
