Product details

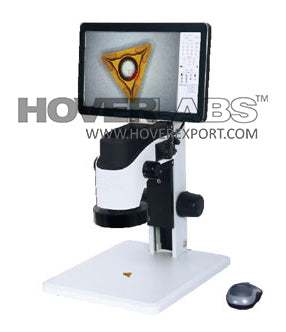

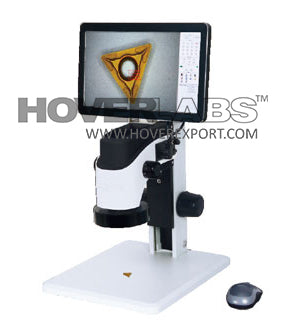

Digital Measuring Microscope (with Display)
Specification:
- Sensor: 1/2" CMOS
- Pixel: 2M
- Resolution: 1920x1080
- Magnification: 12X~77X
- Focus Distance: 115mm
- View Field: 2.7x1.9~17.5x11.9mm
- Maximum Workpiece Height: 60mm
- Frame Rate: HDMI: 1080P: 60fps
- Output: USB/HDMI
- Power Supply: Power Adapter
- Dimension: 610x610x660mm
- Weight: 4.5kg
Magnification and Measuring Accuracy
|
Objective Magnification |
Image Magnification |
Measuring Accuracy |
| 0.7X | 12X | ±9µm |
| 1X | 17X | ±9µm |
| 1.5X | 26X | ±8µm |
| 2X |
35X | ±7µm |
| 2.5X | 43X | ±7µm |
| 3X | 51X | ±7µm |
| 3.5X | 60X | ±6µm |
| 4X | 88X | ±6µm |
| 4.5X | 77X | ±6µm |
Features
- Electronic magnification feedback lens: when the objective lens magnification is changed manually, the software automatically selects the corresponding pre-calibration data and calibration is not needed
- Two methods of LED brightness adjustment, knob adjustment and software adjustment Built-in software without computer, operated by mouse
- Take pictures, save to USB flash disk
- Measuring results can be sent to Excel
STANDARD DELIVERY
- Main Unit: 1Pc
- Calibration Rule: 1Pc
- Power Adapter: 1Pc
- Mouse: 1Pc
- 16G Use flash disk: 1Pc
Warranty and support
Every HOVERLABS instrument carries a 1-year Ex-Works warranty against manufacturing defects. Units are stringently tested on numerous parameters, strictly adhering to tech. specs., before dispatch. Online installation, if required, is free (one time); physical installation is charged extra.
Shipping and payment
Free shipping across India with no packaging charges. Institutions can order via purchase order, NEFT/RTGS or UPI, and credit terms are available for eligible buyers. Add your GSTIN at cart for a GST tax invoice. Export enquiries: LC or wire transfer, all Incoterms.
Bulk, tender and GeM supply
We match BOQ specifications line by line and supply against purchase orders as well as GeM. Send your requirement list for a formal quotation, usually within one working day — Tenders & GeM.
