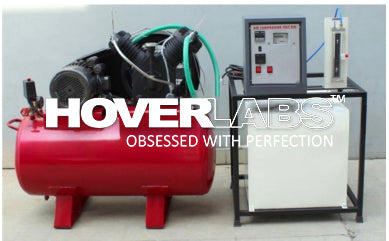

Double Stage Air Compressor Test RIG
Description
Two stage air compressor test rig consists of a double stage air compressor driven by Motor through a belt. The outlet of the air compressor is connected to reservoir (Tank) and suction is connected to another air tank with a calibrated orifice plate and a water manometer. Bellow is fitted on one side of the air tank to regulate the flow. Temperature of inlet air, after single compression, inlet and outlet of second compression and pressure in reservoir and at intermediate stage can be measured by thermometers/ temperature sensors and gauges.
Experiments
- To calculate volumetric efficiency
- To calculate isothermal HP
- To calculate compression ratio
Features
- Compact & stand alone set up
- Superb Painted structure
- Simple to operate & maintain
Utilities Required
- Electricity 3 kW, 220V AC, Single Phase
- Floor Area 1.5 x 0.75 m
Technical Specification
|
Compressor |
Double Stage, Double Cylinder |
|
Drive (Crompton Motor) |
3 HP |
|
Manifold Tank |
110 Ltr |
|
Air Flow Measurement |
Orificemeter with Manometer |
|
Air Tank (with safety valve, shut off valve) Capacity |
200 Ltr |
|
Pressure Gauge |
Bourdon type |
|
Control Panel |
RPM indicator with Proximity sensor, Energy meter, Digital Temp. Indicator: 0-199.9°C, with multi-channel switch, On/off switch, Mains Indicator etc. |
*The whole set-up is well designed and arranged in a good quality painted structure
