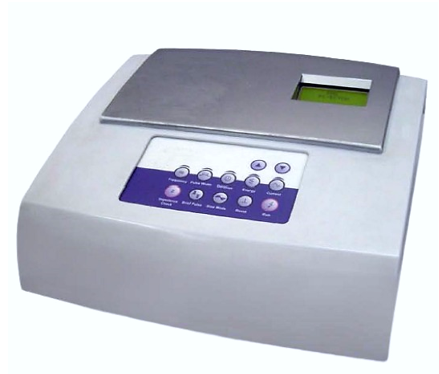

Electroconvulsive Therapy Machine (Model No. HV-ECT-601)
Electroconvulsive Therapy Machine without S/W & PC Ecton
Technical Specifications:
ECT Features:
- Portable & Light weight
- Alphanumeric LCD display
- Easy to clean feather touch keypad
- Dual operating modes- Brief Pulse mode & Sine Wave mode
Frequency, Duration, Pulse Width, Current Selectable by user. Energy Automatically Calculated by the micro computer.
Type : Bidirectional square wave
Frequency : Selectable 1 OHz - 140Hz in 15 steps of 1 OHz each
Pulse Width : Selectable 0.1 O mS - 2.0 mS in 20 steps of 0.1 mS each
Duration : Selectable from 0.10 Secs to 5 Secs in 50 steps of 0.10 secs each.
Current : 500 mA - 800 mA in 7 steps of 50 mA each.
Energy : Energy is delivered according to the head Impedance.
Sine Wave Mode
Current : 650 mA (fixed)
Frequency : 50 Hz (fixed)
Duration : 0.5ms (fixed)
Energy : Energy is delivered according to the head Impedance.
Component : Quantity
Head Band : 1 No.
Conductive Jelly : 1 Bottle.
Earthing Cord : 1 No.
Dust Cover : 1 No.
Instruction Manual : 1 No.
