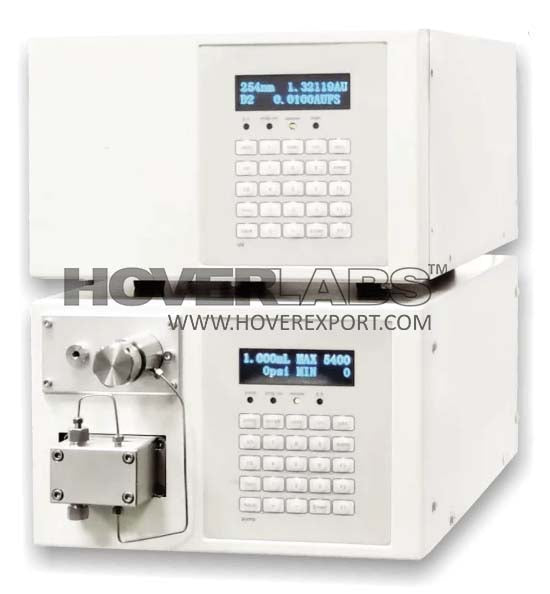

High-Performance Liquid Chromatography With Rheodyne Injector (Model No. HVO-6200)

High-Performance Liquid Chromatography with Rheodyne Injector

Specifications (Pump)

Infusion Way                        Series dual plunger
Flow Rates                            0.001 ~10.000ml/min
Pump Pressure Accuracy     ± 2%
Pressure                               0 – 6000 psi
Pulsation                              <15psi from 600 to 1,600 psi, Flow 1mL/min
Dimensions                          170H x 260W x 360D, (mm)
Flow Accuracy                      ≤±1 %(2μL/min)
Flow Precision                      0.1%
Operating Temperature       4~40°C
Weight.                                (6.3 kg)

Specifications (UV-Detector)

• Wavelength: 190-700nm
• Wavelength Accuracy: <+1nm
• Wavelength Reproducibility:  ≤± 0.5 nm
• Dynamic Noise: <+2.5x10^-5 Methanol, 1ml/min, 254nm, 20°C)
• Dynamic Drifting: <+2.5x10^-5 Methanol, 1ml/min, 254nm, 20°C)
• Qualitative Repeatability: RSD < 0.1%
• Dimensions (mm): 160H x 260W x 350 D
• Operating Temperature: 4-40°C
• Linear Range: >104
• Spectral Bandwidth: 6nm
• Flow Pool Volume: 10µL
• Optical Bath: 10mm
• Static Noise: <+ 1x10^-5 AU (Empty Pool, Response Time 1s, 20°C)
• Static Drifting: <+1x10^-4 AU (Empty Pool, Response Time 1s, 20°C)
• Qualitative Repeatability: RSD < 0.5%
• Weight: 6kg

• Minimum detection concentration: ≤1×10-                                                                                                                         8g/mL (Naphthalene/methanol solution)

Accessories

• High Pressure Constant Flow Pump     1 Set
• UV Detector                                          1 Set
• Manual Injection                                   1 Set
• Injector                                                  1 Set
• C-18 Chromatography Column             1 Set
• Injector Holder                                       1 Set
• Toolkit                                                    1 Set
