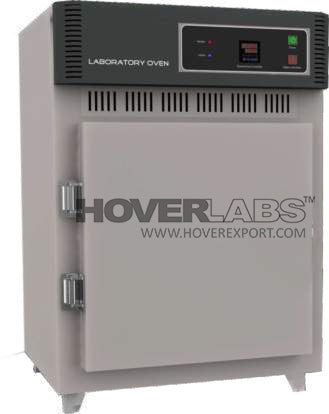

“HOVERLABS” Precision Oven (330֯ C) (Model: HVS89HO)

“HOVERLABS” Precision Oven (330֯ C)

(Model: HVS89HO)

“HOVERLABS” make Lab Hot Air Oven are with forced air circulation provided by means of motorized blower fitted on the back of the oven for re-circulation of air to maintain the uniformity of temperature inside the chamber. Ovens are made of tripple walled construction with backside triple. The unit is insulated with 3" high grade glass wool. Single door fitted on heavy hinges. The unitis provided with used friendly adjustable stainless steel rod trays.

CONSTRUCTION

- Controlling System: Microprocessor based auto tune PID temp. controller with dual display of set value & process value for precise control of temperature with PT 100 sensor is used for temperature.

- Heating System: S. S. tubular heating elements used on back & side walls to maintain uniform condition inside the chamber. Three side heating

- Air Re-circulation: Motorized blower with Insulated Shaft on back side of the chamber develops unique air flow system which ensures maximum uniform temperature distribution inside the chamber. Unique air flow assures quick recovery after door openings.

- DOOR: Standard Model: Single door fitted on heavy cast and chromium plated hinges with spring and toggle locking with ceramic gasket.

- GMP Model : Single door fitted on heavy cast and chromium plated hinges with toggle locking with Silicon gasket.

FEATURES

- Safety cum stand by thermostat to cut off the heater supply in case of overshoot of temperature.

- Specially designed stainless steel rod trays which ensure uniform temperature distribution.

- Door open alarm

TECHNICAL SPECIFICATION:

- Temp Range: 50 ֯ C to 330 ֯ C

- Temp Accuracy: ±0.2 ֯C

- Temp. Uniformity: ±5 ֯C

- Supply: 230V, AC

- Capacity Litres: 91

- Internal Dimension: 45*45*45

- Trays: 2

INTERNAL CODE: - KD.2380.251213
