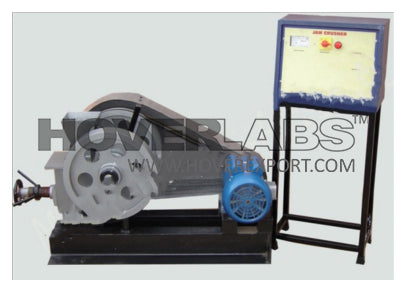

Jaw Crusher
Description
Laboratory Jaw Crusher is designed to speed up the crushing of aggregates, ores, minerals, coke, chemicals and others similar materials. It is compact and of rugged construction for general laboratory or small pilot plant operations. The set-up is a Blake Jaw Crusher contains two Jaws of Manganese steel with one Jaw stationary and other moving. The movable jaw produces blows for every revolution reducing over sizing to a minimum. Combinations of forward and downward strokes with a rocking
action exert pressure on the coarser materials yet permit the finished materials to pass through the jaws. A hopper is provided at the top for feeding material. The smooth jaws ensure a uniform product and easy cleaning is possible. The opening of the Jaw is adjustable from 3 mm up to 25mm. The motor is coupled to the machine through Triple 'V' belt drive.
Experiments
- To determine the efficiency of the crusher for crushing a material of known working index
Features
- Superb Painted structure
- Simple to operate & maintain
Utilities Required
- Feed Product
- 3 kW, 220 Volts AC supply, 1Ø
- Floor area 1.5 x 1m
- Set of sieves with sieve shaker for analysis
Technical Specification
|
Jaw |
Material Manganese Steel, Size Length 100mm & Width 150mm |
|
Feed Hopper |
Suitable capacity. |
|
Feed Size |
50 - 70 mm (approx.) |
|
Product discharge size |
5 – 15 mm |
|
Capacity |
20-30kg/hr. |
|
Drive |
Electric motor, 3 HP. 1440 RPM, Single phase Standard Make. Fitted with Triple ‘V’ belt pulley |
|
Control Panel |
With required electrical instrumentation Electronic Energy Meter Starter 3HP, Single Phase, Crompton/ Kirloskar Make MCB For Overload Protection On /Off switch Main indicator etc. |
|
Energy Measurement |
Electronic |
*Painted rigid MS structure is provided to support all parts
