Linear Scale and Readout Set for Lathe (Model No. HVO-ISL-SET1)

Linear Scale and Readout Set for Lathe (Model No. HVO-ISL-SET1)


  • Rs. 76,185.00

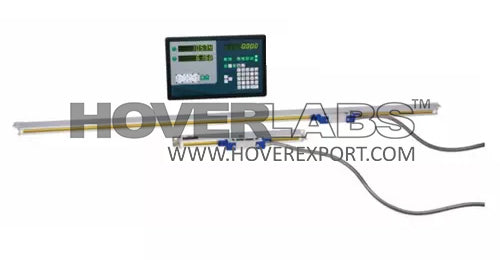

Linear Scale and Readout Set for Lathe


  • Application: Two-Axis
  • Scale Input Ports: 2
  • Resolution: 1µm
  • Functions: Addition of 2-scale data, linearity error compensation, smoothing, RS232C interface unit, BCD code out, zero setting, preset, resolution setting, counting direction setting, inch/mm conversion, ABS/INC conversion, expansion/contraction coefficient setting, "½" calculation, detecting RI, bolt-hole circle machining, ramp circle machining
  • Power Supply: 110/220V, 50/60Hz
  • Dimension: 295x185x45mm
  • Weight: 1.45kg

Linear Scale Specification:

  • X- Axis: 200mm
  • Y- Axis: 1000mm
  • Max. response speed: 50m/min
  • Scale grating pitch: 20µm
  • Scale Reference point pitch: 50mm
  • Accuracy: ±(5+5L/1000) µm (L is the effective length in mm)
  • Cable length: 200mm scale: 3.5m, 1000mm scale: 5m


  • Software flash disk (Included)
  • Mounting Bracket (included)

Standard Delivery

  • Readout Box: 1Pc
  • 200mm Linear Scale: 1Pc
  • 1000mm Linear Scale: 1Pc
  • Mounting Bracket for readout: 1Pc
  • Ground Cable for readout: 1Pc
  • RS232C Cable for readout: 1Pc
  • Software Flask Disk for RS232C of readout: 1Pc
  • 'L' Shape support for linear scale: 1Pc
  • Anti-Dust cover for linear scale: 1Pc
  • Mounting Accessories for Linear Scale: 1Package
