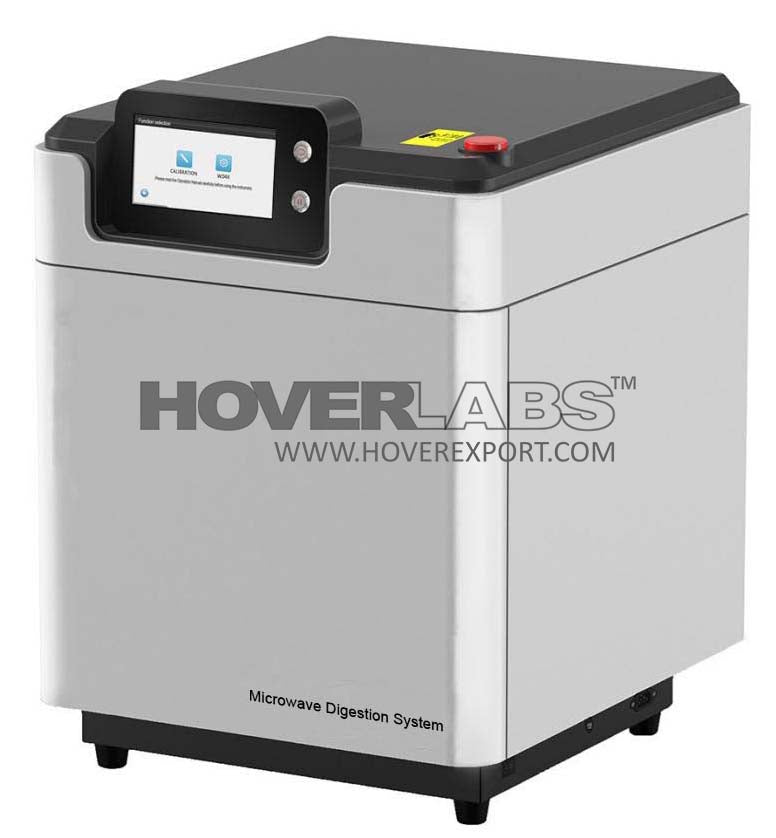

Microwave Digestion System (Model No. HVO-MW6)

Microwave Digestion System (Model No. HVO-MW6)


  • Rs. 1,236,125.00

Microwave Digestion System

The compact body owns same powerful performance, up to 6 position rotor meets most of experiment requirements, which would be a good choice for school labs, general factory labs and research institutes, etc.


  • Compatible with 6 position rotor which meets different digestion demands.
  • Vertical waveguide design, 3D output technology and harmonic power frequency highly ensure uniform microwave distribution.
  • The imported contactless IR sensor and pressure sensors are adopted in temperature and pressure controlling system, which realizes the real-time monitoring of temperature and pressure in each vessel and display the T&P scanning curve.
  • No consumables, e.g. bursting disk, sealing cup, etc. lower the maintenance cost.
  • The strong outer shell is made of intensive carbon fiber and polymeric materials which highly ensure the safety.
  • Equip with smart 7-inch touch screen, intelligent software and user-friendly interface,
  • High power turbulent air-cooling design makes fast cooling.


  • Vessel Quantity: 6
  • Temperature Monitoring System: Contactless IR sensor All vessels scanning monitoring
  • Pressure Monitoring System: Contactless pressure sensors All vessels scanning monitoring
  • Working Pressure Range: 0-6MPa
  • Working Temperature Range 50-400 C Accuracy: ±0.1 C
  • Max Working Temperature: 250 C
  • Vessel Volume 100mL
  • Display Smart 7-inch color touch screen
  • Rotation Mode 360 continuous rotation
  • Microwave Power: 0 ~ 1000 W (Adjustable)
  • Microwave Frequency: 2450MHz
  • Cavity Volume: 35L
  • Microwave Leakage: <5mw/cm2
  • Power: AC 220V±10%, 10A, 50/60Hz
  • Dimension (L x W x H): 490mm*560mm*533mm
  • Weight: 40KG
