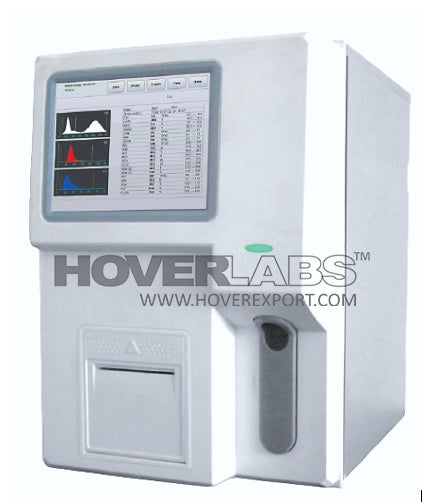

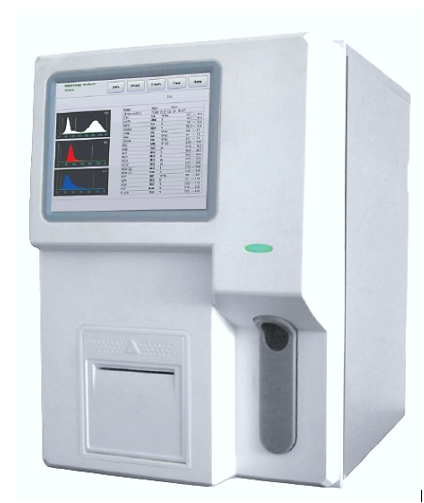

3 Part Auto Hematology Analyzer (Model No. HV-HA-863)

3 Part Auto Hematology Analyzer

Features:

• Easy operations and maintenance

• 20 parameters with 3 histograms
• Multicolor touch screen display
• Automatic cleaning of sample probe
• High voltage shock and back-flush for clog elimination
• Floating boundary algorithm and histogram abnormal prompt function
• Use the cyanide-free SFT method to measure hemoglobin
• Two reagents (diluent and lyse) for complete results

Technical Specifications:

White Blood Cells, Red Blood Cells and Platelets are counted using the direct impedance
method with coincidence correction. Automatic floating discriminators separate the cell populations based on complex and accurate algorithms. The intensity of the electronic pulse from each analyzed cell is proportional to the cell volume.
The hematocrit (HCT) is directly determined based on the red cell count and volume  detection of each individual RBC.

Principle
Electrical impedance method for cell counting and Cyanide - free for hemoglobin

Parameters
WBC, Lym#, Mid#, Neu#, Lym%, Mid%, Neu%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR

Histograms
WBC, RBC, PLT

Throughput
60 samples per hour

Sample volume
Venous mode: 10μL venous blood
Capillary mode: 10μL capillary blood
Prediluted mode: 20μL capillary blood

Display
8-inch color LCD touch screen with resolution of 800×600

Calibration
Manual and Auto-calibration

Quality control
3 level QC with LJ graph

Memory
100,000 sample results with histograms

Printout
50 mm thermal printer, various printout formats, external printer (optional)

Power
~AC 110-240V, 50/60±1Hz

Physical
Dimensions: 410 x 435 x 472 mm
Weight: 19kg

Operating Environment
Temperature: 15°C~30°C
Humidity: 30%~85%

Performance
Parameter                   Linearity Range          Precision (CV%)
3 WBC (10 /μL)               0 - 99.9                      ≤ 2.0
6 RBC (10 /μL)                0 - 7.99                      ≤ 1.9
HGB (g/dL)                     0 - 24.99                    ≤ 1.9
MCV (fL)                                                           ≤ 0.4
3 PLT (10³ /μL)                  0 -999                       ≤ 4
