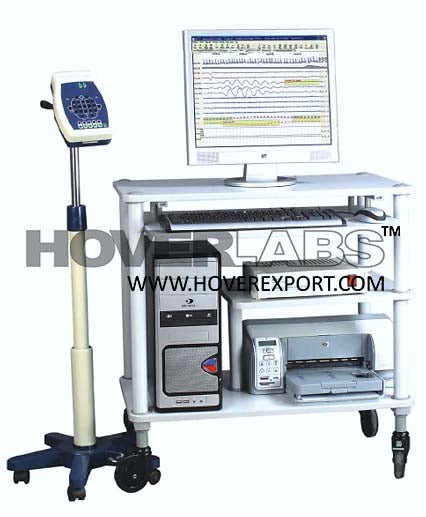

Polysomnography Machine, 32 Channel (Model No. HV-PSG-32)

Polysomnography Machine, 32 Channel (Model No. HV-PSG-32)

HOVERLABS

  • Rs. 435,500.00
8

Polysomnography Machine, 32 Channel (PSG Machine)

Salient Features:

  • Upto 32 channels of Acquisition.
  • Raw data storage.
  • Unlimited continuous recording.
  • Adjustable channel width.
  • Event marking with comments.
  • User definable montages.
  • On line / Off line reformatting of filters (Hf, Lf) and sensitivity.
  • Selectable epoch for careful data observation.
  • Facility to mark pages for printing in review.
  • Ultra fast automatic paging facility for efficient analysis.
  • Fast extensive search capabilities.
  • Screen freeze facility to study event carefully.
  • Effective data base management.
  • Archiving on any media.
  • High resolution display.
  • Portable system option available.
  • Compact patient box.
  • Make Autorun CD/DVD which can be played on any system with the software setup.

Auto Reporting

  • Apneas & Hypopneas:

                 Obstructive
                 Mixed
                 Central

  • Bifurcation of OSA, CSA, MSA, HYP in REM & NREM.
  • Show Sleep Stages in Analysis.
  • Automatic marking of K-Complexes, sleep spindles, REM.
  • Spike & Seizure Detection.
  • Detailed reporting of Oximeter, Heart rates, Snoring etc.
  • Oximetry Histogram.
  • Video Recording.
  • Show CPAP Pressure Delivered to patient and during analysis.

Technical Specifications:

A/D Conversion : 16 bit ADC
Sampling Rate : 1024 Hz
Sensitivity : 1 to 1500 μV/mm & user definable.
Low pass filter : 0.1, 0.3, 0.5, 1, 3, 5, 7 Hz & user definable.
High pass filter : 0.1, 0.3, 0.5, 2, 10, 15, 35, 70, 99 Hz & user definable
Notch Filter : 50/60 Hz
Input lmpedence : > 10 M Ohms
CMRR : > 100 db
Noise level : < 0.3 μV RMS
