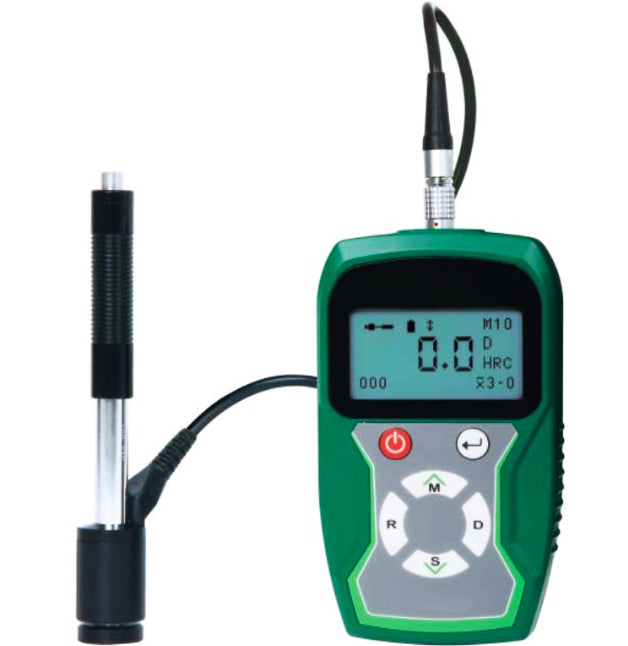

Portable Leeb Hardness Tester (Basic Type) (Model No. HVO-HDT-LP200)
Portable Leeb Hardness Tester (Basic Type)
Specification:
-
Resolution: 1HLD/1HV/1HB/0.1HRC/0.1HRB/0.1HSD/1αb
- Accuracy: ±6HLD/±0.3%(when HLD=800)
- Measuring range: HL 170-960/HRC 17-0/HRB 13-109/HB 20-655/HV 80-940/HSD 32-99.5/αb(rm) 255-2639N/mm2
- Power supply: 2xAAbattery
- Dimension: 127x67x30mm
- Weight: 240g
Standard Delivery:
- Main Unit: 1Pc
- Hardness Test Block D:1Pc
- Small Support Ring: 1Pc
- Cleaning brush: 1Pc
- Impact device D: 1Pc
Features:
- Can use wired probes or wireless probes
- Dual—coil probe for high accuracy
- Universal testing angle, no need to set impact direction
- Based on Leeb (HLD), converted to Vickers (HV), Brinell (HB), Rockwell (HRC, HRB), Shore (HS) and tensile strength (αb)
- Dual value display, shows both Leeb and converted hardness
- Large LCD display with backlight
- Can choose large font display and statistics display
- Automatically calculate maximum, minimum and average value
- Save 300 data
- Operating temperature: -10°C~45°C
-
According to ASTM A956 and DIN 50156
