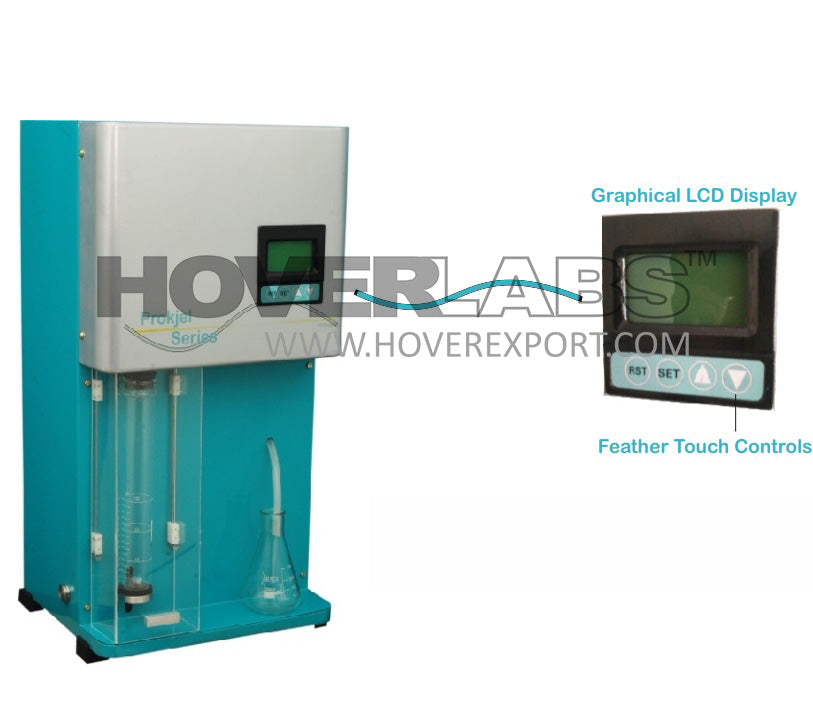

Semi-Automatic Kjeldahl Apparatus (Model: HV-504-KA)
Þ Nitrogen Recovery99.8 - 100 %
Þ Accuracy Supersedes conventional Kjeldhal apparatus results.
Þ Reproducibility± 1% relative or better
Þ Analysis range0.5 - 160 mg of nitrogen / 3 - 1000 mg of protein
Þ Distillation Capacity3 - 4 minutes per sample (15 to 20 samples per hour)
Þ Receiver Solution *Programmable between 15-50ml
Þ Water dilution Programmable between 0-100 ml in steps of 10ml
Þ Alkali addition Automatic mode / Manual mode (Continuous)
Þ Alkali volume Programmable between 15 - 50 ml
Þ Reaction delay time Programmable 0-5 minutes.
Þ Distillation time Programmable 1-99 minutes
Þ Steam generator Borosilicate glass / Stainless Steel and Safety valve
Þ Temperature control RTD based Micro controller with Standby mode.
Þ Water level control Stainless Steel Float Switches
Þ Cooling Water Automatic (90 Liters per hour) Nil with CRC 25 Chiller*
Þ Condenser Made of borosilicate glass
Þ Distillate collection18 - 25 ml per minute optimally.
Þ Water/Alkali tank5 Liters ea.
Þ Dimension (W x D x H)370 x 320 x 720 mm.
Þ Electrical requirement230V, 50Hz Single phase AC, 1500W.
Internal Code: - KD.6012.220415
