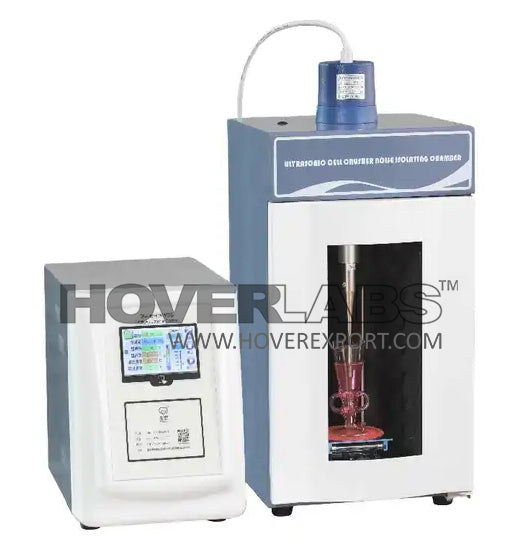

Touch Screen Probe Ultrasonicator (Model No. HVO-APU-500)
Touch Screen Probe Ultrasonicator
Ultrasonic probe sonicators, also known as an ultrasonic homogenizer or ultrasonic processor, is a device that uses ultrasonic waves to disrupt and disperse particles in a liquid medium. It is commonly used in laboratories and research settings for sample preparation, cell disruption, and particle size reduction applications.
The basic components of a sonicator typically include a power supply, a transducer, and a probe (also called a horn or a tip). The transducer converts electrical energy from the power supply into high-frequency mechanical vibrations, typically in the range of 20 kHz to 25 kHz Automatic Tracking. These vibrations are then amplified and transmitted through the probe.
When the probe comes into contact with a liquid sample, the ultrasonic waves generate cavitation bubbles, similar to what happens in ultrasonication. The collapse of these cavitation bubbles creates localized high temperatures, pressures, and shear forces that disrupt particles and cells, leading to various effects like homogenization, lysis, and dispersion.
Sonicators are used in various scientific applications of sonication include:
1. Cell Disruption
2. Sample Preparation
3. Particle Size Reduction
4. Extraction
5. Degassing
6. Sonochemistry
Specification
- Power (W) Adjustable: 10-500 W
- Frequency (Khz): 20-25 Khz Automatic Tracking
- Probe (mm): Ø6
- Optional Probe (mm): Ø2, Ø3, Ø8, Ø10, Ø12
- Process Capacity (ml): 0.2-500
- Store Data: 20 Sets
- Total Working Temperature: 1-999 minutes
- Temperature Alarm Range: 0-99°C
- Instrument Protection Function: Over-temp
- Duty Ratio: 0.1-99.9 %
- Display: Touch Screen Display
- Power Requirements: AC 220V /50HZ
- Dimension (LxWxH) mm: 490 x 370 x 280
- Weight approx.: 15 Kg
Key Features
- 1User Password Protection
- 2Microprocessor Controlled and Programmable
- Large Touch Screen LCD Display with Time Setting
- Temperature Indicator and Controller
- Auto-Tuning
- Variable Power Output Control
- Auto Frequency Tracking
- Output Amplitude Adjustment
- Automatic Fault Alarm
