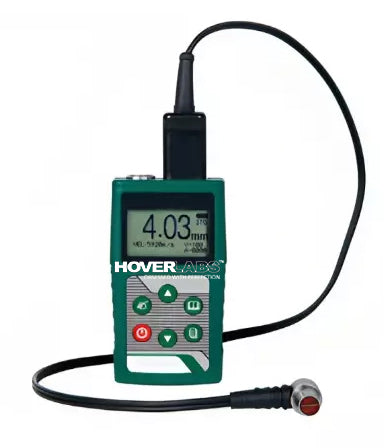

Ultrasonic Thickness Gage (Model No. HVO-ISU-250C)
Ultrasonic Thickness Gage
Specification:
- Range: refer to specification of transducers
- Resolution: 0.1/0.01mm
- Accuracy:
±0.04mm (H<10mm)
±(0.04+H/1000)mm (10<H<100mm)
±H/333mm (H>100mm)
H is the thickness to be measured in mm
- Velocity: 1000-9999m/s
- Operation temperature of main unit: -20~50°C
- Output: USB
- Measuring unit: mm/inch
- Power Supply: 2x1.5V AAA batteries
- Dimension: 64x116x27mm
- Weight 220g
Specification of Transducers (On Steel)
Code | Frequency |
Diameter (Ød) |
Measuring Range |
Minimum size of pipes for measurement Diameter x Wall Thickness |
Applicable Temperature | Application |
HVO-ISU-T08 (Included) | 5.0MHz | 11mm | 0.8-300mm | Ø25x1.2mm | -20~60°C | general use |
HVO-ISU-T04 (Optional) | 10.0MHz | 6mm | 0.7-20mm | Ø15x1mm | -20~60°C | for small tubes |
HVO-ISU-T06 (Optional) | 7.5MHz | 9mm | 0.7-50mm | Ø15x1.2mm | -20~60°C | for thin workpieces |
HVO-ISU-T012 (Optional) | 2.0MHz | 17mm | 2-400mm | Ø40x3mm | -20~60°C | for casting iron |
HVO-ISU-T013 (Optional) | 5.0MHz | 15mm | 3-100mm | Ø25x2mm | -0~350°C | for high temperature |
Features:
- Measure the thickness from one side of object, suitable for pipe, tank, etc.
- Applicable material: metal, plastic, glass, nylon, resin, ceramic, rubber, ice
- Tolerance measurement
- Average calculation of maximum 9 readings
- Data can be input to excel and word as keyboard signal
Standard Delivery:
- Main Unit: 1Pc
- Transducer ISU-T08: 1Pc
- Battery (AAA): 2Pcs
- Couplant (for HVO-ISU-T04, HVO-ISU-T06, HVO-ISU-T08, HVO-ISU-T12): 1Bottle
- USB Cable: 1Pc
