Venturimeter, Orificemeter & Rotameter
Description

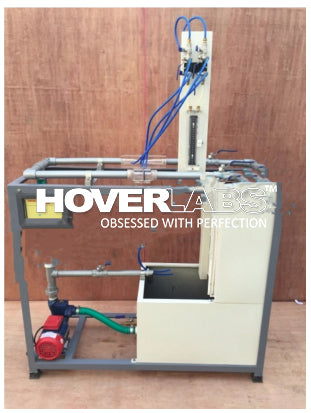

The apparatus consists of two pipelines emerging out from a common manifold. One pipeline contain a Venturimeter, second contains an Orifice and the common manifold pipeline contains a Rotameter. The pressure tapings from the Venturimeter and Orificemeter are taken to differential manometer to measure pressure difference. The Venturimeter & Orificemeter are connected in parallel and anyone of them can be put in operation by operating valves provided at the downstream. These valves can also regulate the flow.
Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stopwatch.
Experiments
- To determine the co-efficient of discharged through Venturimeter and orifice meter.
- To measure discharge through Venturimeter, Orificemeter and Rotameter
- To calibrate the Rotameter.
Features
- Acrylic test section
- Closed loop water circulation
- Compact & stand alone set up
- Stainless Steel tanks
- Superb Painted structure
- Simple to operate & maintain
Utilities Required
- Water Supply & Drain
- Electricity 0.5 kW, 220V AC, Single Phase
- Floor Area 1.5 x 0.75 m
Technical Specification
|
Venturimeter |
Material Clear Acrylic compatible to 1"Dia. Pipe |
|
Orificemeter |
Material Clear Acrylic/ Brass/SS Plate compatible to 1" Dia. Pipe. |
|
Rotameter |
Range 30 LPM MOC Clear Acrylic |
|
Water Circulation |
FHP capacity make Crompton / Kirloskar |
|
Flow Measurement |
Capacity 30 Ltrs. MOC SS fitted with Piezometer Tube & scale |
|
Sump Tank |
Capacity 50 Ltrs. MOC SS |
|
Piping |
MOC GI and PVC |
|
Stop Watch |
Electronic |
|
Control Panel |
On/Off Switch, Mains Indicator, etc |
|
Overall Dimensions |
(L x B x H) 1200 x 420 x 1200 mm |
