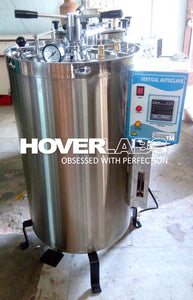

Vertical Autoclave Radial Locking (Model No. HV-101-AC)

Vertical Autoclave Radial Locking (Model No. HV-101-AC)


  • Rs. 36,805.00

Vertical Autoclave Radial Locking

Construction :

  • The outer chamber is made of heavy gauge MS Sheet lined with heavy gauge SS Sheet.
  • The inner chamber is made of thick 304 Grade Stainless Steel Sheet.
  • Lid is made of thick machined high grade Stainless Steel plate.
  • The unit has Radial Locking arrangement made of high grade SS duly polished with paddle lifting mechanism.
  • Unit is provided with Spring Loaded Safety Valve, Pressure Gauge, Pressure Release Valve, Water Level Indicator & Drain Valve.
  • Unit is hydraulically tested to withstand upto 40 psi pressure.
  • All internal joints are Argon arc welded, ground and polished to give crevice free internals. Molded joint-less Silicon Rubber Gasket is provided for leak proofing.
  • The unit is electrically heated by flange type/immersion type heaters.
  • Supplied with Control Box, fitted with Mains & Heating Indicators, ON / OFF Switch, Cord & Plug to work on 220/230V, 50Hz, AC supply.
