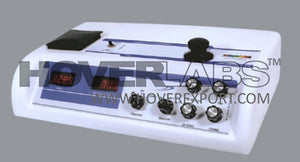

Digital Spectrophotometer (Model No. HV-PM Series)
Salient Features :
- Range 340 to 960 nm
- Dual Digital Display for Wavelength & Data
- Wavelength Resolution 1 nm
- Highly Stable & Accurate
- Direct Concentration Facility
- 10 mm, 50 mm & 100mm path length
Specifications :
- Range : 340 to 960 nm
- Resolution : 0.1 % T, Abs : 0.001. Abs : 0 Cone. to : 1 1.999,
- Output : % T: 0 to 100%, Abs : 0 to 1.999, Conc. : 0 to 1999
- Detector : Silicon Photodiode
- Light Source : 6 V, 10 W, Tungsten Halogen Lamp
- Monochromator : 600 lines/mm holographic grating
- Spectral Bandwidth : 5 nm
- Wavelength Resolution : 1 nm
- Wavelength Accuracy : ±2.5 nm
- Display : 3¼ Digit Bright Red LED Dual Display for Data & Wavelength
- Operating Temp. Range : 50 to 450C
- Power : 230V±10% AC, 50 Hz
- Dimensions (LxBxH) : 475 x 285 x 130 mm (Approx.)
- Weight : 8.5 kg (Approx.)
