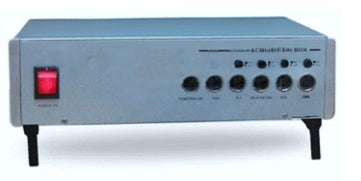

Advanced Biofeedback System (Model: HV-BS-701)

Advanced Biofeedback System (Model: HV-BS-701)

Technical Specifications:

Number Of Channels : 6
A/D Conversion : 14-bit A/D
Sampling Rate : 256Hz
Sensitivity : 1 to 1500 μV/mm
Low Pass Filter : 0.1, 0.3, 0.5, 1,3,5,7 Hz
High Pass Filter : 0.1, 0.3, 0.5, 2, 10, 15, 35, 70, 99Hz.
Sweep Speed : 15, 30, 60,100 mm/sec
Notch Filter : 50HZ
Input lmpendence : > 10M ohm
CMRR : > 80-85db
Power : 220V AC/ 12V, 2.2AH
Battery Backup : Approx. 3 Hrs

Inputs

EEG (Alpha): Through silver -silver chloride electrodes.
EMG: Through silver-silver chloride Electrodes
GSR: Two silver - silver chloride Electrode.
Pulse: Through infrared sensor.
Respiration: Through chest belt.
Temperature: Through surface temperature probe.

Minimum Computer Configuration

OS: Windows XP Pro/Windows7 Professional 32 bit,
Processor: Core2 Duo or higher,
RAM: 2GB or higher, 4 0 GB hard disk or higher, CD/DVD Optical Drive, Screen Resolution 1024 x 768 or higher

Internal Code: - KD.2625.25106
