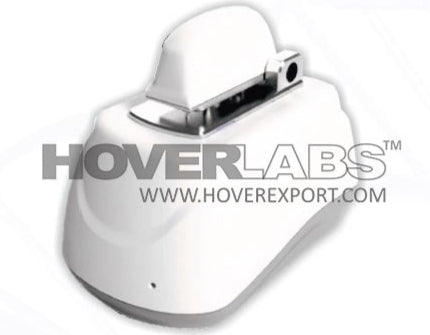

Advanced Nano Spectrophotometer (Model No. HV-5102)

Nano is a conventional laboratory equipment not only widely used in molecular biological experiments.such as DNA. RNA. protein detection. but also used in absorbance detection for the general substance analysis. It includes three common detections to the nucleic acids, nucleic acid markers and proteins. The variable
pathlength of Nano Ready realizes both the minimum sample volume detection as lowas 0.5uL, suitable for precious samples, and the detection to the high concentration samples without dilution at all Including the liquid drop, it builds in the standard cuvette detection module for more use.

Specifications :

• Detector    :    2048-element liner CCD array
• Mini. Sample Amount (ul)    :    0.5
• Mini.  Pathlength  (mm)    :    0.05
• Wavelength Range (nm)    :    185-910
• Wavelength Accuracy (nm)    :    ±1
• Spectral Resolution (nm)    :    <1.8(FWHMat Hg 253.7nm)
• Absorbance Accuracy    :    0.002 (1mm optical length)
• Absorption Accuracy    :    3%(at 0.64A at 350nm)
• Limit ot Detection    :    2ng/ul dsDNA
• Max Detection Concentration    :    15000ng/ul dsDNA
• Detection Time    :    <5 Sec.
• Cuvette Mode    :
• Heating Temp.(t)    :    37±0.5
• Mi. -ig Speed (RPW)    :    150-850
• Optical Length (mm)    :    10 5,2.1
• Limit of Detection    :    0 4-nq/ul dsDNA
• Max. Detection    :    750ng/ul dsDNA
• Data Interface    :    USB
• Wireless Conneclion    :    Wifi
• Software Update    :    USB direct update
• Accessory    :    Pipette holder
• Power    :    AC110V-220V 50HZ/60HZ (Power adapter)
• NET Weight:    :    2.1KG

Features :

High sensitivity
2028 linear CCD detection unit new generation product, has higher sensitivity, accuracy as well as repeatability.

Stability for the long life :

Long-life xenon flash lamp of Hamamastu ensures stability of detection and the long life of instrument. The lifting detection base with sliding bearing structure has high precision, not easy to damage

Ultra wide wavelength range :

With continuous wavelength range as 185-910 nm. the instrument can detect various samples through selecting any band It adapts to a variety of detection requirements with wide range of near infrared wavelength.

Accurate pathlength :

The stepper motor combined unique double track technology (DPTL), allows the precision of optical pathlength as 0.001mm. thus to achieve highly repeatability of absorbance detection.

Wireless connection :

WiFi connected PAD to control the detection and results display and storage without need the cables. Dynamic detection realizes remote controlling and timing reading the results without manual intervention.
