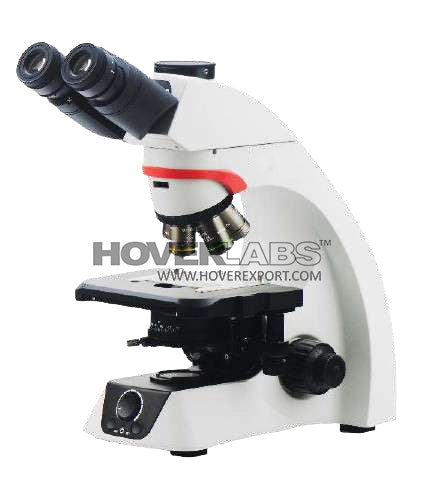

ADVANCED RESEARCHED MICROSCOPE (Model: HOX-750-DM)

ADVANCED RESEARCHED MICROSCOPE

(Model: HOX-750-DM)

Technical Specifications: -

Optical system: Infinity Super PLAN Achromatic color correction optical system.

Body structure: A high-quality aluminum alloy Single mold stand with hands at rest for enhanced comfort and stability. The surface is sprayed with nano silver ion antibacterial coating to effectively inhibit growth of microorganisms. The microscope has ECO energy saving and (LIM) light intensity management function, supports stepless brightness setting.

Lighting system: Built-in SUPER-LED Daylight simulated LED lighting system with constant color temperature of 4500K, light source life of more than 60,000 hours;

Focus system: Coaxial Synchronised coarse & fine focusing system. The assisted fine focus has a minimum step accuracy of up to 1μm and a maximum stroke of 25mm. It has tension adjustment and anticollision height limiter.

Stage: Rackless X axis, double plate stage size 200 x 140mm, X/Y travel range 76mm x 55mm. Low drive right hand movement controls. Hard coated surface for scratch resistance.

Slide clip: The slow-rebound left-hand section clamp supports single slides and can carry heavy samples such as counting chambers.

Condenser: Pre-centered Kohler condenser with aperture indicator scale marking NA 0.1~1.1, supports bright field, polarized light and other contrasting techniques.

Observation tube: 30° Siedentopf trinocular observation tube with 50/50 split with interpupillary adjustment range of 46-78mm.

Eyepiece: 30mm bore wide field eyepiece with magnification 10x, FOV 22mm with +/-5 diopter adjustment. 15x, 20x and 30x eyepieces. (Optional).

Nosepiece: The microscope body has a built-in inward-inclined

quintuple coded objective nosepiece with proper click stops and RMS international standard objective thread interface.

Objective: Super-Plan Infinity objectives: 4X (NA ≥ 0.10, 10X (NA ≥ 0.25), 20X (NA ≥ 0.40), 40X (NA ≥ 0.65), 100X (NA ≥ 1.25), Anti-fungal & Anti-reflection treated.

Anti-mold device: Optical imaging components such as observation tubes, eyepieces, and objectives have all been treated with antifungal and anti-mildew treatments.

Environmental friendly: All optical components used are made of environmentally friendly lead-free glass and comply with RoHS environmental directives.

Electronics: Universal input 100V- 240V AC, 50/60Hz, built-in voltage stabilizer.

Accessories (Optional):

Pointers & Micrometer reticules

Wooden box

Auxiliary objectives and eyepieces

Slider/Turret Type Phase Contrast attachment

Polarizing attachment

Single filter/ Dual filter Fluorescent attachment

Dark Field attachment

Application specific USB/HDMI cameras

Package Contents:

10ml Immersion oil bottle

User manual

Nylon dust cover & cleaning cloth

Styrofoam casing

INTERNAL CODE: - KD.PRV/25719
