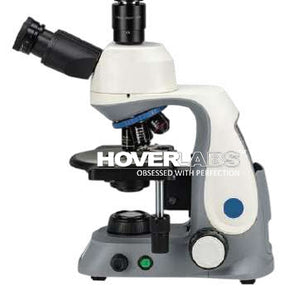

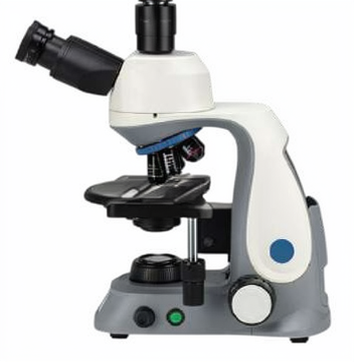

ALPHA TRINO MICROSCOPE (Model: HOX-7)

ALPHA TRINO MICROSCOPE

(Model: HOX-7)

Technical Specifications: -

Optical System: Infinity color corrected optical system.

Viewing Head: 30° gemel trinocular tube, 360° rotatable, spectroscopical ratio R:T=50:50 or 80:20, adjustable eye-point height can adapt to operators of different heights.

Body Structure: The surface is sprayed with nano silver ion antibacterial coating to effectively inhibit growth of microorganisms. The microscope has ECO energy saving and (LIM) light intensity management function, supports stepless brightness setting. Eyepiece: Wide field plan eyepiece PL10X/22mm, with reticle, diopter adjustable.

Objectives: HOX series Super PLAN color Corrected Achromatic objectives 4x/NA 0.10 (WD 15.9mm), 10x/NA 0.25(WD 17.4mm), 20x/NA 0.4 (WD 1.5mm), 40x/NA 0.65 (SL) (WD 0.5mm) and 100x/NA 1.25 (SL, oil) (WD 0.15) with multi-layer Anti-fungal and anti-reflection coating. Nosepiece: Reversed revolving quintuple nosepiece (Ball bearing type) with click stops. (Brightness memory).

Stage: Double layers mechanical ceramic paint stage, precision: 0.1 mm (X-axis rackless); Clips for double sliders, moving range 78mm x 51 mm.

Condenser: Sub stage abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap in frosted Day and Light filters (white/Blue filter). Slot for contrast slides available. Rack and pinion movements on stainless steel guides with multi-layer Anti-fungal and anti reflection coating.

Illumination System: 100V-240V internal transformer, 3W or 5W LED with continuous intensity control. Type-c interface allows portable battery as a power source. USB port supports the microscope to charge a phone or tablet. With ECO energy saving function, LCD display, objective brightness memory and color temperature adjustment function, the adjustment range: 3000K-7000K.

Accessories (Optional):

Pointers & Micrometer reticules

Wooden box

Auxiliary objectives and eyepieces

Slider/Turret Type Phase Contrast attachment

Polarizing attachment

Single filter/ Dual filter Fluorescent attachment

Dark Field attachment

Application specific USB/HDMI cameras

Package Contents:

10ml Immersion oil bottle

User manual

Nylon dust cover & cleaning cloth

Styrofoam casing

INTERNAL CODE: - KD.PRV/25719
