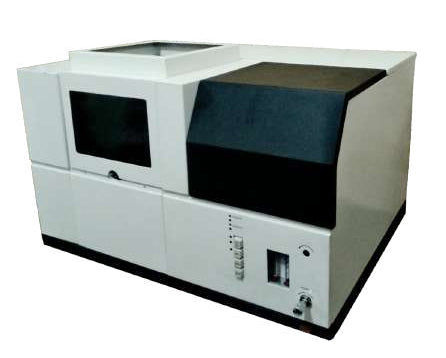

Atomic Absorption Spectrophotometer (Model: HV-5310)

Atomic Absorption Spectrophotometer (Model: HV-5310)

Technical Specifications

- Wavelength Range: 190-900 nm

- Bandwidth: 0.1,0.2,0.4, 1 nm(4 step Auto Switching)

- Monochromator: Aberration Corrected Czerny - Turner  Grating System 1800 line/mm

- Photometric Range: 0-125%, 3.000 ABS

- Gas Control: Automatic Control & optimization(flow/pressure)

- Burner: Air Cooled Titanium

- Nebulizer: High effcient Nebulizer

- Concentration: Standard Curve, Standard Addition, Interpolation

- Test Manner: Flame, Flame Emission

- Times of Repetitive: Measurement 1-30 times, Average Value of A&C

- Resolution: Min 3 lines (279.5 & 279.8 Peak and Valley)

- Working Temperature Range: 10-30•c

- Dimension & Weight (Flame): 700x420x550 mm; 103 kg(approx)

Internal Code: - KD.2627.25107
