Product details

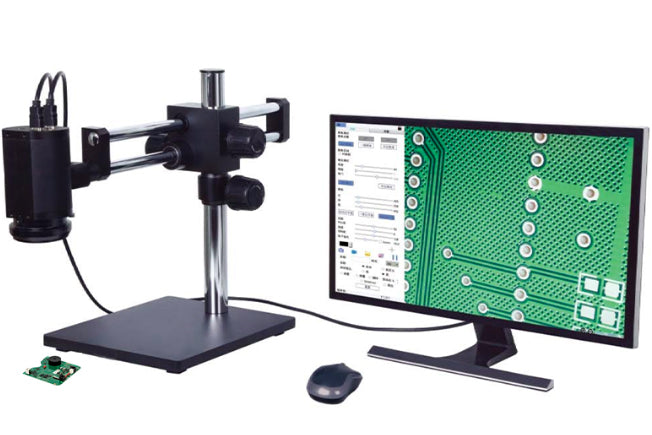

Auto Focus Digital Microscope (Large View Field)
Specification:
- Pixel: 2M
- Resolution: 1920x1080
- Magnification: 1.4X~25.8X (on 28" TV)
- Sensor: 1/2.8" CMOS
- Autio Focus Distance: 100mm~
- Output: HDMI, RJ45
- Frame Rate: HDMI: 60fps, RJ 45: 50fps
- Power Supply: Power Adapter
- Dimension: 500x280x410mm
- Weight: 17kg
VIEW FIELD
| Focus Distance |
Adjustable Magnification (on 28" TV) |
View Field |
| 100mm | 3.9-25.8X | 24x14~168x91mm |
| 150mm | 2.6-20X | 30x17~240x128mm |
| 200mm | 2.1-17X | 27x20~315x170mm |
| 250mm | 1.7-14.7X | 42x24~385x210mm |
| 270mm | 1.4-14X | 43x25~415x225mm |
MEASURING ACCURACY
|
Optical Magnification |
Measuring Accuracy |
| 2X | ±0.1mm |
| 4X | ±0.1mm |
| 6X | ±0.04mm |
| 8X | ±0.02mm |
| 14X | ±0.02mm |
| / | ±0.02mm |
Features:
- Auto focus camera
- Take pictures and videos
- Can be connected to TV (HDMI port) and computer (RJ45 port) at the same time
- Built-in measuring software for TV
- Measuring software for computers is included
- Automatic exposure and white balance
- Brightness, contrast ratio, gain are adjustable
- Display cross hair (blue/green/red /yellow/black/brown colors)
STANDARD DELIVERY
- Main Unit (with stand): 1Pc
- LED illumination: 1Pc
- 16G USB flash disk: 1Pc
- Mouse: 1Pc
- HDMI cable (for TV): 1Pc
- Network Cable (for Computer): 1Pc
- Switch: 1Pc
- Software for Computer: 1Pc
- Power Adapter- 2Pcs
