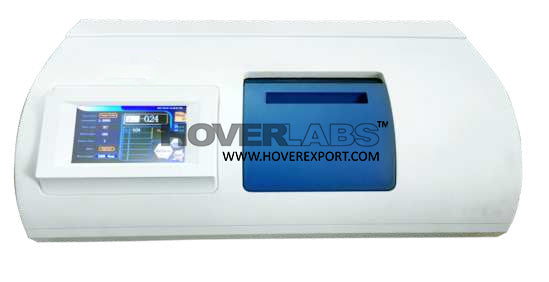

AUTOMATIC POLARIMETER WITH TOUCH SCREEN (Model: HVS-SP489A)

AUTOMATIC POLARIMETER WITH TOUCH SCREEN

(Model: HVS-SP489A)

Technical Specifications: -

The Automatic touch screen polarimeter provide excellent application modes Without Sacrificing accuracy and precision it is an ideal instrument for various application.

4 Test modes: Optical rotation, specific rotation sugar degree and concentration

Light source:LED

Measurement range :+45° (optical rotation + 120° Z(sugar)

Wavelength:589.3nm

Minimum indicating value:0.001° (optical rotation)

Accuracy: a)±0.01° (-15° < optical rotation <+15°) b)±0.02° (optical rotation<-15° or optical rotation>+15°)

Repeatability:0.002° (optical rotation)

Display: Color Touch Screen

Test tube:200mm, 100mm

Sample transmittance:> 1%

Interface: USB & RS232

Operation voltage:220V+ 22V, 50Hz

Overall Dimensions:850mm x 500mm x 470mm

Weight(Gross):38kg

Software: Yes

CHARACTERISTICS:

-Touch Screen Colour Display.

-Temperature Display

-Need not prewarm when turning on.

-Measuring specific rotation, optical rotation, sugar degree and concentration

-Automatic repetition-measurement for 6 times, and calculation of average value and means square root

-Measurement of dark-colored sample

-USB & RS232

-Response Time 3°/sec.

-Faraday mangneto-optical modulator

-Polarizer Polarizing film

-Digital Polarimeter based on Optical null principle

-No warm-up time is required when instrument is switched on

-Insulated Sample chamber to keep sample temp. constant

-Photodiode Detector

-Purity method - saccharic concentration

INTERNAL CODE: - KD. 2336.25719
